Isolation IC Product portfolio extended with Low Power Dual I2C Isolator and isolated CAN transceiver

31/10/2024

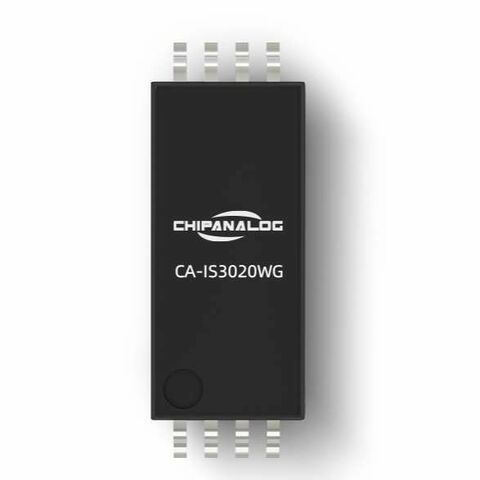

CA-IS3020WG Ultra-Wide Body Low Power Dual I2C Isolator！This product has a creepage distance and electrical clearance up to 15mm, and the isolation withstand voltage is up to 7.5kVRMS (1 minute), enhancing the insulation grade.

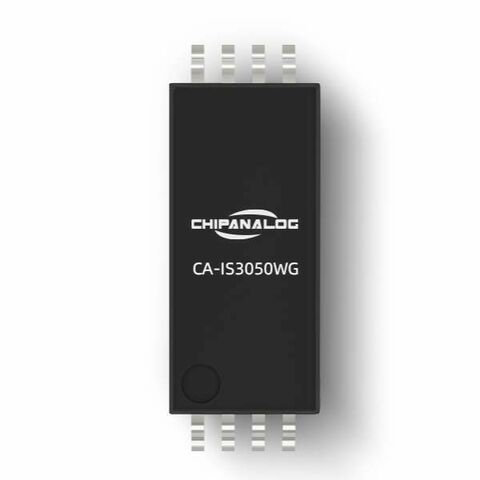

CA-IS3050WG isolated CAN transceiveri is a ultra-wide body isolation interface added to its existing isolation portfolio. This product features a creepage distance up to 15mm and an isolation withstand voltage up to 7.5kVRMS (1 minute), enhancing the insulation class.

Main Features

IS3050 Features

Integrated protection increases robustness
3.75kVRMS and 5kVRMS withstand isolation voltage for 60s (galvanic isolation)
±150kV/μs typical CMTI
±58V fault-tolerant CANH and CANL
±30V extended common-mode input range (CMR)
Transmitter dominant timeout prevents lockup, data rates down to 5.5kbps
Thermal shutdown

IS3020 Features

Robust Galvanic Isolation of Digital Signals
High lifetime: > 40 years
Withstands up to 3.75kVRMS (narrow-body package), 5kVRMS (wide-body packages) and 7.5kVRMS (super wide-body packages) isolation rating for 60s (VISO)
±150 kV/μs typical CMTI
Schmitt trigger inputs for high noise immunity
High electromagnetic immunity and withstands ±12.8kV surge voltage
±8kV Human Body Model ESD Protection
