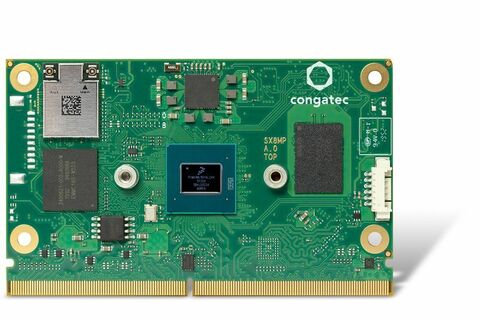

The new SMARC 2.1 modules for vision and AI applications feature four quad-core Arm Cortex-A53 based NXP i.MX 8M Plus processors for the industrial (0°C to +60°C) or extended temperature ranges (-40°C to +85°C) as well as in-line ECC for up to 6 GB LPDDR4 memory. The modules can drive up to three independent displays and provide hardware accelerated video decoding and encoding including H.265 so that high resolution camera streams delivered by two integrated MIPI-CSI interfaces can be sent directly to the network. For data storage, engineers will find onboard up to 128 GB eMMC, which can also operate in safe pSLC mode. Peripheral interfaces include 1x PCIe Gen 3, 2x USB 3.0, 3x USB 2.0, 4x UART as well as 2x CAN FD and 14x GPIO. For real-time networking, the module offers 1x Gbit with TSN support plus conventional Gbit Ethernet. An optional M.2 WiFi and Bluetooth LE card soldered on the module adds wireless connectivity. 2x I2S for sound rounds off the feature set. The supported operating systems include Linux, Yocto 2.0 and Android.
Congatec is a rapidly growing technology company focussing on high-performance embedded computing products, so-called computer-on-modules and industrial single board computer.
