SMARC 2.1 Module with Intel Atom® processors x7000E, Core™ i3 and N Series (“Alder Lake-N”).

13/01/2023

The SMARC 2.1 module TQMxE41S is available with a wide variety of processors in the power range 6 W to 15 W TDP. It combines high CPU and graphics performance (incl. increased AI acceleration) with a variety of high-speed interfaces such as 2x 2.5 Gigabit Ethernet, 4x PCIe, USB 3.2 and SATA in a very compact design. The high system performance is supported by the latest LPDDR5-4800 memory and up to 256 GB Industrial iNAND eMMC. Many other interfaces ensure easy connection of numerous peripheral components.

Main Features

  • Intel Atom® processors x7000E Series, Intel® Core™ i3 processors, and Intel® Processors N Series
  • One common design from dual-core up to 8-core
  • High efficiency with 6 W to 15 W processor power
  • Up to 16 GB LPDDR5, with In-Band-ECC (option)
  • Up to 256 GB eMMC
  • Three independent high-resolution display outputs including DP++, HDMI and eDP/LVDS
  • Intel® AVX256 and Intel® Deep Learning boost support
  • 2x 2.5 Gigabit ETH, high-speed PCIe and IO
  • Extended security features
  • Small size (82 mm x 50 mm)
  • SGeT SMARC 2.1 (RC1) compliant
Documents Tech question

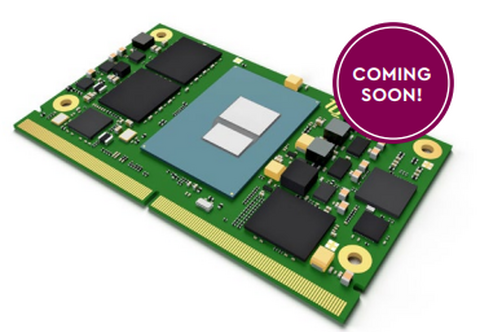

Schermafbeelding 2023 01 13 095211

SMARC 2.1 Module with Intel Atom® processors x7000E, Core™ i3 and N Series (“Alder Lake-N”).

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • Shutterstock 1495556456

    Artificial intelligence & Edge computing

  • 13 AV Broadcast

    A/V & Broadcast

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1163832229

    GPU and Edge computing

  • Shutterstock 1178903887

    Computer & System-on-Modules

TQ

TQ offers Embedded Modules and systems based on ARM, x86, QorIQ Layerscape or Power Architecture in the form of embedded modules, Single Board Computers, Industrial PCs, modular solution platforms and finished systems.

Read more
TQ Logo

Documents

  • TQMxE41S
