Reliable Cat-1 LTE connectivity for European 4G networks with 3G fallback

12/06/2020

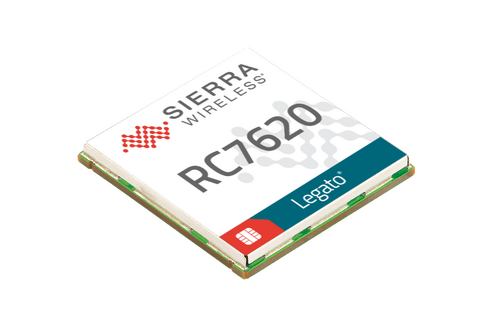

The AirPrime® RC7620-1 IoT Module is part of the RC Series that lowers total cost of ownership (TCO) by offering a module with Ready-to-Connect embedded SIM to instantly connect devices anywhere in the world. The industrial-grade CF3® (Common Flexible Form Factor) footprint future-proofs designs, enabling you to build IoT products on the most scalable module platform in the world.

This LTE Cat-1 wireless module is ideal for low-bandwidth IoT applications that require real-time communication along with the longevity and network quality that 4G LTE networks bring.

Delivering up to 10Mbps download speed, many IoT projects requiring the speed between LPWA and Cat-4 technologies are using Cat-1 networks to future-proof their designs as 3G networks sunset.

Documents Tech question
Sierra Wireless RC7620

Reliable Cat-1 LTE connectivity for European 4G networks with 3G fallback

  • Features
  • Applications
  • Technologies
  • Documents

Technical Specifications: 4G LTE

  • Category: Cat-1
  • Frequency Bands: B1, B3, B7, B8, B20, B28

3G

  • UMTS: B1, B8

2G

  • EDGE: 900, 1800
  • GPRS: 900, 1800
  • GSM: 900, 1800

DATA SPEED

  • Peak Download Rate: 10Mbps
  • Peak Upload Rate: 5Mbps

LOCATION SERVICES

  • Satellite Systems: Optional: GPS, Galileo, Glonass, QZSS, Beidou

EMBEDDED SOFTWARE

  • Firmware: Secure boot, Pre-certified firmware
  • Embedded Platform: Legato® open source
  • Audio: Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, PCM, VoLTE, Circuit Switched Voice (Voice CS)
  • System Drivers: Windows® 10, Linux Driver: Standard ECM, Android RIL

INTERFACES

  • UART: 1 X 8-wire
  • USB: 1
  • ADC: 2
  • GPIO: 8
  • Tx ON Indicator: 1
  • SIM interface 1.8V/3: 1
  • Max Update Rate: 1 Hz

HARDWARE

  • CF3 Form Factor: LGA, Snap-in socket option
  • Dimensions: 22x23x2.5mm
  • Antenna: Diversity, MIMO
  • Temperature Range: Industrial Grade: -40°C / +85°C

APPROVALS

  • Planned Carrier: Vodafone, Sierra Wireless
  • Regulatory: GCF, RED

EMBEDDED SIM

  • Optional Ready-to-Connect (Sierra Wireless USIM)*

CLOUD SERVICES

  • Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option

Applications & Markets

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 1047068560

    Wireless connectivity SoCs & modules

Documents

  • Sierra Wireless Airprime RC76xx Product technical specification
