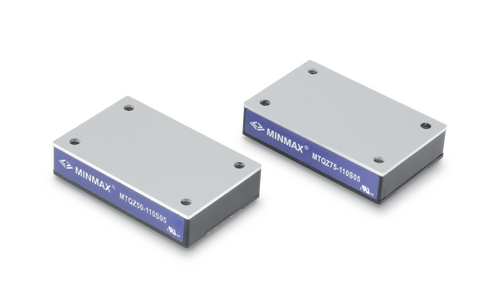

Railway Certified Quarter Brick DC-DC Converter 50-75W

07/08/2020

MINMAX Railway DC-DC Converter family offer industrial standard quarter brick with output power rating from 50 to 75 Watt which are designed to meet stringent requirements and harsh environment. Quarter Brick DC-DC converters are available for railway input voltage with 72V, 110V VDC and tight regulation for 5V, 12V, 15V, 24V VDC output voltage. In accordance with EN50155 approval, railway DC-DC Converters conform:(1) railway input voltage range and transient requirement. (2) vibration and thermal shock test meets EN61373. (3) cooling, dry and damp heat test meets IEC/EN 60068-2 (4)railway EMC standard EN50121-3-2 and complies also with railway approval EN50155 (IEC60571). Advanced circuit topology provides a very high efficiency up to 92%, allowing baseplate temperature up to 105℃ and very high I/O isolation up to 3000VAC with reinforced insulation. Further features include overload/voltage/temp., short circuit protection, remote ON/OFF, output voltage trim, output sense and complies specifically fire protection test meets EN45545-2 to ensure safety during railway/railroad vehicle operation. MINMAX Railway DC-DC converters are high reliable solutions for critical railway applications in traction inverter, backup power system, train operation monitor, gate controller and many railway systems.

Documents Tech question
Minmax fd8284583a8895ed442fd3f772c4310f

Railway Certified Quarter Brick DC-DC Converter 50-75W

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
Minmax specs MTQZ50 75

Applications & Markets

  • 18 Traffic Transportation

    Traffic & Transportation

Technologies

  • Shutterstock 2049802019 Converted

    DC/DC converters

MinMax

Minmax is a specialist in the design and manufacturing of DC-DC converters & AC-DC power supplies for ITE, Railway, Renewable energy and medical applications.

Read more
Minmax Logo

Documents

  • Minmax MTQZ50 Datasheet
  • Minmax MTQZ75 Datasheet
