Nvidia ADA Lovelace MXM solutions for Graphics applications

07/02/2025

The product lineup-AD2000/AD3500/AD5000 is engineered to meet diverse needs of modern medical facilities. Whether it’s for portable ultrasound devices, advanced CT/MRI systems, or AI-driven diagnostic tools, these models provide the flexibility and power to support a range of applications. GPUs can boost the performance of a wide range of workloads, including image processing and analysis, compute acceleration, and artificial intelligence (AI). As requirements for responsiveness and accuracy become more demanding for edge systems, the combination of CPUs and GPUs is becoming more mainstream in order to deliver optimal efficiency in performance per watt and dollar.

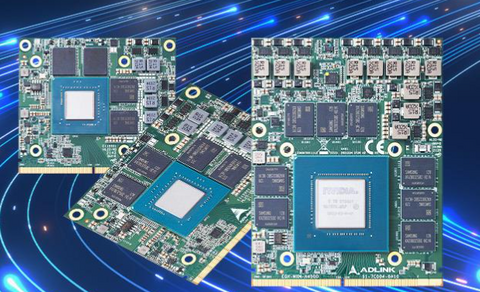

EGX-MXM-AD5000

Embedded MXM GPU Module with NVIDIA RTX™ ADA 5000

EGX-MXM-AD3500

Embedded MXM GPU Module with NVIDIA RTX™ ADA 3500

EGX-MXM-AD2000

Embedded MXM GPU Module with NVIDIA RTX™ ADA 2000

Main Features

EGX-MXM-AD2000

  • NVIDIA Ada Lovelace Architecture
  • Standard MXM 3.1 Type A (82x70 mm)
  • PCIe Gen 4 x8 Interface
  • 3072 CUDA® Cores, 24 RT Cores, and 96 Tensor Cores
  • 14.5 TFLOPS peak FP32 performance
  • 8GB GDDR6 memory, 128-bit
  • 256GB/s maximal memory bandwidth
  • 5-year Availability

EGX-MXM-AD350

  • NVIDIA Ada Lovelace Architecture
  • Standard MXM 3.1 Type B (82x105 mm)
  • PCIe Gen 4 x16 Interface
  • 5120 CUDA® Cores, 40 RT Cores, and 160 Tensor Cores
  • 23 TFLOPS peak FP32 performance
  • 12GB GDDR6 memory, 192-bit
  • 432GB/s maximal memory bandwidth
  • 5-year Availability

EGX-MXM-AD5000

  • NVIDIA Ada Lovelace Architecture
  • Standard MXM 3.1 Type B (82x105 mm)
  • PCIe Gen4x16 interface
  • 9728 CUDA® Cores, 76 RT Cores, and 304 Tensor Cores
  • 42.6 TFLOPS peak FP32 performance
  • 16GB GDDR6 memory, 256-bit
  • 576GB/s maximal memory bandwidth
  • 5-year Availability
Documents Tech question
Adlink

Nvidia ADA Lovelace MXM solutions for Graphics applications

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • Shutterstock 1495556456

    Artificial intelligence & Edge computing

  • Shutterstock 613309214

    Life sciences, Lab, Bio & Pharma

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 12 Security Surveillance

    Security & Surveillance

  • 8 Instrumentation

    T&M and instrumentation

Technologies

  • Shutterstock 1178903887

    Computer & System-on-Modules

  • Shutterstock 1163832229

    GPU and Edge computing

Adlink

Adlink's mission is to affect positive change in society and industry by connecting people, places and assets with artificial intelligence; we do this through the delivery of leading edge, robust and reliable hardware and software solutions that directly address mission-critical business and technology challenges.

Read more
Adlink Logo

Documents

  • Embedded MXM Modules (NVIDIA Ada Lovelace Architecture)
