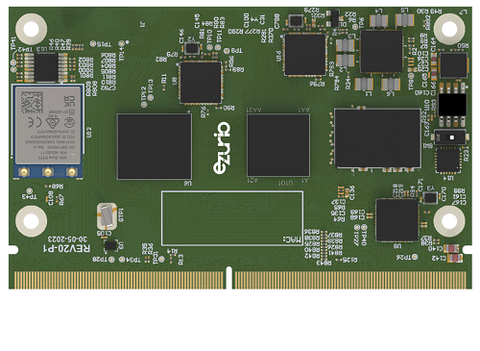

Nitrogen93 Connected SMARC System-On-Module

28/03/2025

A SMARC® SOM with powerful processing using NXP i.MX 93 and Wi-Fi 6E Connectivity

This power efficient system-on-module (SOM) is the first NXP i.MX 93 based SMARC module to offer Wi-Fi 6E connectivity.

The Nitrogen93 SMARC can be optimized to your project with a variety of memory configurations, temperature ranges and the option to use our Sona™ IF573 Wi-Fi 6E & Bluetooth 5.4 combo radio module based on Infineon Technologies' AIROC™ CYW55573 silicon. This high-performance module, combined with our new SMARC Carrier Board, together serve as a single board computer (SBC) that can significantly speed your products to market.

  • NXP i.MX93 processor, Wi-Fi 6/6E and Bluetooth 5.4
  • Secure, Smart, Standardized, Globally Certified
  • Multiple memory options and temperature ranges

Main Features

  • Reliable Connectivity: Optional Wi-Fi 6E and BT 5.4:

Excellent Wi-Fi and BT Classic / LE connectivity in difficult environments, plus enterprise Wi-Fi support via WPA3-Enterprise for more secure robust connections

  • ML, Graphics, Vision, Audio, and Industrial Peripherals:

1 TOPS Machine Learning NPU, MIPI-DSI, LVDS, or parallel display, MIPI-CSI camera interface, I2S audio interfaces, 2x CAN/CAN-FD, 2x Gbit Ethernet

  • Secure Enclave and Secure Boot Powered by I.MX 93:

Dedicated on-board security hardware, secure boot Linux, and high-performance and flexible secure storage system for passwords, certificates, and data storage

  • Robust Software and Speed to Market:

Choose from Yocto Linux or Buildroot Linux for the Cortex-A55s, Zephyr RTOS and FreeRTOS for the Cortex-M33

  • Global Radio Approvals:

SKUs with Sona IF573 carry several modular FCC, IC, CE, UKCA, RCM, MIC, KC and Bluetooth SIG approvals

  • Personal Support from Design to Manufacture:

Our industry-renowned support and field application engineering team is passionate about helping you speed your design to market

Documents Tech question
Ezurio Nitrogen93

Nitrogen93 Connected SMARC System-On-Module

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 2 Energy Utilities

    Energy & Utilities

  • 17 Home Building Automation

    Home & Building Automation

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 1178903887

    Computer & System-on-Modules

Ezurio

Ezurio (former Laird Connectivity) is a long-established industry leader in enabling wireless connectivity. We offer the industry’s broadest spectrum of products spanning Wi-Fi, Bluetooth/Bluetooth LE, LoRaWAN, Cellular, custom point-to-point implementations and more.

Read more
Ezurio Logo

Documents

  • Ezurio Nitrogen93 Datasheet
