- 10:1 Input Voltage Range
- 0.5A Output Current
- Efficiency To 93%
- Short Circuit Protected
- Pin Compatible to LM78xx Units
- Adjustable Output Voltage
- Right Angle Pins Available
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

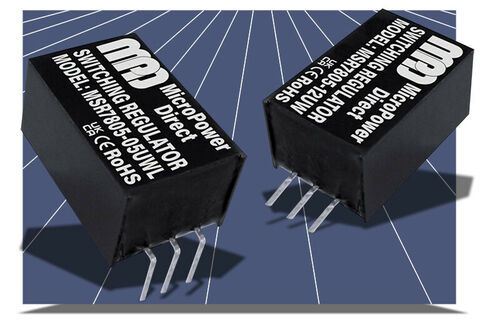

The MSR7805UW is afamily of compact switching voltage regulators. Six standard models, operating from inputs as wide as 10:1 (9 to 90 VDC), provide a single, tightly regulated output of 3.3, 5.0, 6.5, 9.0, 12, or 15VDC at 500 mA.
Standard features include efficiency as high as 93%, low noise operation and very tight line/load regulation. The MSR7805UW is protected (continuously with autorecovery) against short circuit faults. The MTBF of the series is greater than 2Mhours(per MIL HDBK 217F).
MicroPower Direct ( MPD ) growth is driven by a commitment to delivering innovative, high quality power conversion products at the lowest possible prices.
