Intelligent display module

24/11/2023

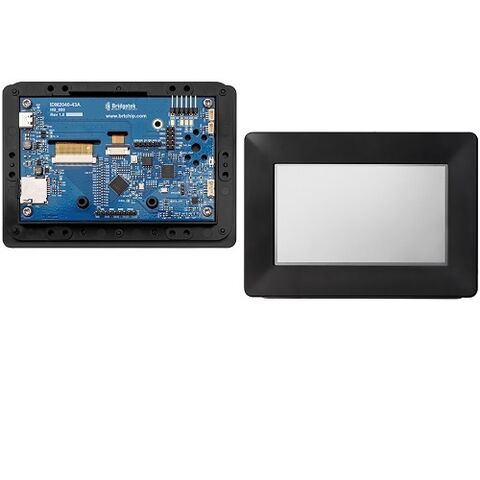

The IDM2040-43A is an intelligent display module featuring a 4.3” 480x272 resolution TFT LCD panel with capacitive touch panel. The module carries Bridgetek’s new embedded video engine controller BT883Q supported by a low-cost high-performance Raspberry PI RP2040 microcontroller. Apart from on board UART, I2C and SPI interfaces, users can also extend communication with two add-on accessories board to include RS232 and RS485 channels.

Main Features

  • BT883Q new generation of EVE controller
  • Supports 4.3” 480x272 LCD with capacitive touch screen
  • On board audio power amplifier and audio connector for external speaker and audio line in
  • RP2040 MCU with 8 MB on-board flash memory programmable with Circuit Python (libraries provided)
  • Type-C port for RP2040 USB DFU or debug
  • Micro-SD card socket
  • 2x Stemma QT (QWIIC) I2C peripheral sockets
  • SPI pin headers for Adafruit Wi-Fi module or other peripherals
  • 6-position header for mating with FTDI TTL cables
  • RS232 transceiver adaptor (optional add on module)
  • RS485 transceiver adaptor (optional add on module)
  • Hardware reset button
  • RP2040 DFU button
  • Precision fitted bezel in black
  • CE/FCC/UKCA certified
