Congatec welcomes the launch of Intel’s new low-power processor generation on five embedded form factors. Available on SMARC, Qseven, COM Express Compact and Mini Computer-on-Modules as well as Pico-ITX Single Board Computers (SBCs).
The different Intel Atom x6000E Series processors, Intel® Celeron® and Pentium® N & J Series processors (code named “Elkhart Lake”) based on low-power 10 nm technology will pave the way for a new generation of edge-connected embedded systems.
The new congatec boards and modules impress with doubled graphics performance for up to three simultaneous displays running at 4kp60 and a whopping 50% moreⁱ multi-thread computing power compared to their predecessors on up to 4 cores.
Further benefits especially welcomed in real-time industrial markets are Time Sensitive Networking (TSN), Intel® Time Coordinated Computing (Intel® TCC) and Real Time Systems (RTS) hypervisor support as well as BIOS configurable ECC and extended temperature options from -40°C to +85°C.

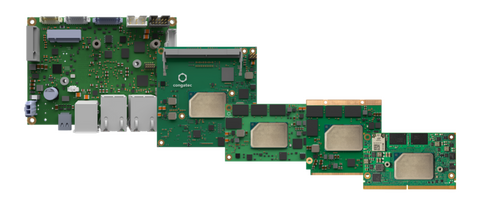

The Boards in detail:
Qseven module based on Intel® Atom® x6000E, Intel® Pentium® and Celeron® J processor series
SMARC 2.1 module based on Intel® Atom® x6000E and Intel® Pentium® and Celeron® J Series processors
COM Express® Mini Type 10 module based on Intel® Atom® x6000E, Intel® Pentium® and Celeron® J processor series
Pico-ITX SBC based on Intel® Atom® x6000E, Intel® Pentium® and Celeron® J processor series
COM Express Type 6 Compact based on Intel® Atom® x6000E, Intel® Pentium® and Celeron® J processor series
The new boards and modules are available in Pico-ITX Single Board Computer (SBC), SMARC, Qseven, COM Express Compact and Mini form factors in the following processor configurations:
|Processor||Cores / Threads||Clock [GHz] (High Frequency Mode//Turbo/Burst)||CPU L2 Cache (MB)||GFE Execution Units||TDP (W)|
|Intel Atom® X6425E||4||1.8 / 3.0||1.5||32||12|
|Intel Atom® X6413E||4||1.5 /3.0||1.5||16||9|
|Intel Atom® X6211E||2||1.2 /3.0||1.5||16||6|
|Intel Atom® X6425RE||4||1.9 / –||1.5||32||12|
|Intel Atom® X6414RE||4||1.5 / –||1.5||16||9|
|Intel Atom® X6212RE||2||1.2 / –||1.5||16||6|
|Intel® Pentium®J6425||4||1.8 / 3.0||1.5||32||10|
|Intel® Celeron® J6413||4||1.8 / 3.0||1.5||16||10|
Congatec is a rapidly growing technology company focussing on high-performance embedded computing products, so-called computer-on-modules and industrial single board computer.
