The Ethernet PHY portfolio at DAPU is currently being built up. Available PHY ICs are the DAP8201M for 10Base-Te/100BASE-TX and the DAP8211R for 10Base-Te/100Base-TX/ 1000Base-T with an operating temperature range of 0°C to 70°C. According to DAPU Telecom, it is planned to extend the operating temperature range to the industrial grade -40°C to +85°C by the end of 2022. In addition, DAPU Telecom is developing products for data rates above 1Gbit.
Functions such as a power-down/sleep mode, auto-negotiation, Wake-on-LAN (WoL), automatic polarity correction, clock output for the connected MAC, simple power supply (only one VDD required) and drivers for (network) status LEDs are offered by both ICs.
| Part Number | MAC interface | physical interface | standard | Operating temperature | package | Remark |
| DAP8211R | RGMII | Electrical interface | 1000BASE-T | 0℃ ~ +70℃ | QFN 40-pin 5mm x 5mm | Support SyncE |
| 10BASE-Te | 5mm x 5mm | |||||
| 100BASE-TX | ||||||

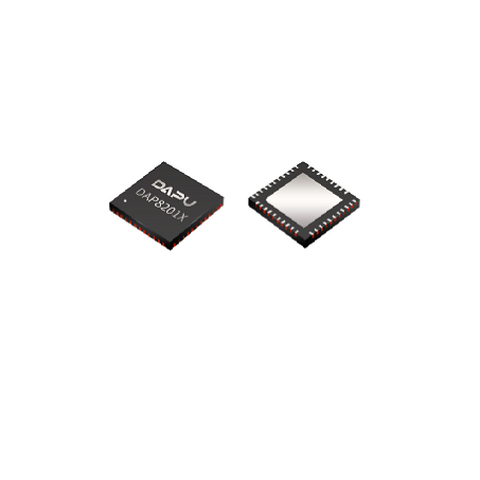

| DAP8201M | MII/RMII | Electrical interface | 10BASE-Te | 0℃ ~ +70℃ | QFN 32-pin 5mm x 5mm | |
| 100BASE-TX | 5mm x 5mm |
DAPU TELECOM, Founded in 2005 provides core products and solutions for communication networks, ICT and AIoT markets. Dapu’s focus on the telecom industry, started in 3G, growing in 4G and is leading in 5G with Frequency, Clock, Timing and RF passive products for global customers.
