The PICMG CPCI-S.0 CompactPCI Serial standard, which evolved from the PICMG 2.0 specification, is the fastest, most versatile, most cost-effective open standard for CompactPCI (CPCI). The Serial standard is mechanically and electronically compatible with 3U and 6U euro-cards, defining an interface for high-speed switched fabrics with a star topology. Point-to-point connectors allow up to eight peripherals on one system slot without switches or bridges. Two of these connections can be PCI Express x8 fat pipes. Ethernet data transfer can be configured with full mesh topology, which allows up to 1000Base-T connections to all peripheral slots for redundant, safety-critical systems.
i7/ i5 Processor Blades

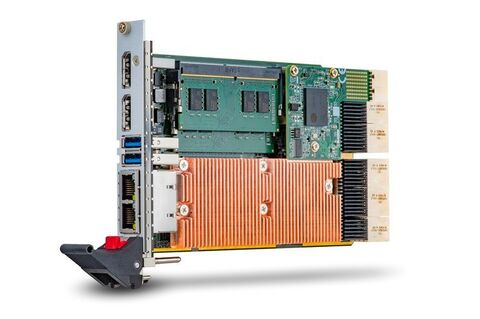

3U CompactPCI Serial 9th Gen Intel Xeon®/Core™ i7 Processor Blade
3U CompactPCI Serial XMC Module Carrier
3U CompactPCI Serial 2.5" SATA Storage Carrier
