Main Features

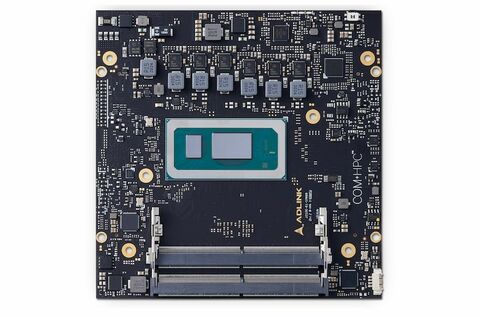

COM-HPC-cADP
- Performance hybrid architecture (P-core, E-core)
- Up to 14 cores, 20 threads at 45W TDP and lower
- Up to 64GB DDR5 SO-DIMM at max. 4800MT/s
- AI inference (AVX-512 VNNI, Iris Xe GPU 96EUs)
- 4 displays via DDI/eDP and USB4/Thunderbolt 4
- 16x PCIe Gen4, dual Ethernet
- Extreme Rugged operating temperature (optional, selected SKUs)
COM-HPC-sIDH
- Up to 20 cores, AVX-512 VNNI
- Up to 256GB DDR4 RDIMM at max. 3200MT/s
- 32 PCIe Gen4 lanes, 16 PCIe Gen3 lanes
- Up to 8x 10G-KR
- Dedicated PCIe and IPMB for remote management
- Extreme Rugged operating temperature range (optional, selected SKU)
COM-HPC Ampere Altra
- Up to 80 Arm-based cores at 150W TDP
- Up to 768GB DDR4 with 6 individual memory channels
- EDK II, seamless support for popular OS, hypervisors, and software
- 64 PCIe Gen4 lanes (3 x16 available)
- Dedicated PCIe and IPMB for remote management
