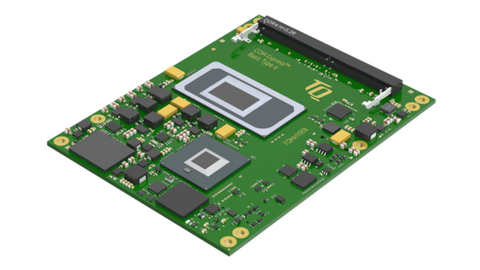

COM Express® Basic Type 6 Module with 11th Generation Intel® Core

21/05/2021

The TQMx110EB sets new standards in terms of CPU, GPU and system performance for COM Express-based solutions and will initially be available with selected processors (Intel Core i7-11800H and Intel Core i5-11400H). The 11th generation Intel Core processors are based on the latest microarchitecture and are particularly energy-efficient thanks to the 10nm manufacturing process (CPU TDP max. 45 W). The equipment with up to eight cores / 16 threads, 24 MB cache and powerful Intel Iris Xe graphics (12th generation) make the module optimally applicable for demanding multi-tasking applications and workload consolidation. AI and machine vision applications additionally benefit from new vector neural network (VNNI) instruction sets, which provide a huge performance boost for inference algorithms.

The embedded module provides impressive graphics performance and brilliant, high-resolution 8K displays in 2D and 3D through the new Intel Iris Xe graphics controller. Together with four independent display outputs, this results in completely new application possibilities in the field of high-resolution multi-monitor display systems and collaborative tools such as interactive whiteboards. The module also supports sophisticated on-the-fly rendering and high-performance video encoding / decoding / transcoding.

Main Features

  • 11th Generation Intel® Core™ i7 and Intel® Core™ i5 processors
  • Desktop / Mobile Workstation Performance
  • Up to 8 Cores / 16 Threads with up to 4.6 GHz Turbo and 24 MB cache
  • New outstanding Intel® Iris® Xe Graphics performance with 8 K high-resolution outputs
  • Flexible high-speed Memory Configuration with up to 64 GB
  • High-bandwidth extendability through PCIe Gen4 x16 PEG Port
  • High-speed peripheral interfaces with USB 3.2 Gen 2 (10 Gb/s) support
  • 2.5 Gb Ethernet
  • High CPU power effiency with max. 45 W TDP
Documents Tech question
Csm tqmx110eb standard e8953226ee Schermafbeelding 2021 05 21 100308

COM Express® Basic Type 6 Module with 11th Generation Intel® Core
