The Gen9 COB is a result of our continuous effort to improve CRI80 efficacy to 200 lm/W warm white and represents a 10% improvement from the previous generation CRI 80 Gen8 COBs. Gen9 COBs are available in a wide range of Light-Emitting Surfaces (LES) from 6 mm to 22 mm in diameter. The breakthrough performance represents the highest efficacy in the COB lighting market.

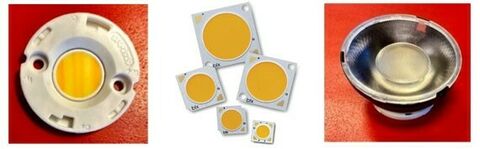

Together with Gen9 V SeriesTM COBs, Bridgelux is offering a set of solder-free COB holders and optical lenses to better serve our customers with a total lighting solution. Both holder and optics meet Zhaga standards. The holders will be suitable for all V SeriesTM and VestaTM TW COBs from Gen9 V6 to Gen9 V22. The optics can be clicked on the holders and have diameters from 35mm, 45mm, and 55mm, to 65mm with a wide range of beam angles from 15 degree to 60 degree.
Gen9 COBs are particularly robust and can be operated with a case temperatures up to 105⁰C at a maximum drive current of 2X normal while delivering the improved efficacy of 200 lm/W at CRI80. Bridgelux Gen9 COBs are an ideal solution for all commercial and residential lighting applications to meet US DLC and Euro ERP energy saving specifications.
Bridgelux is a leading developer and manufacturer of lighting technologies and solutions that invites companies, industries and people to experience the power, possibility and financial potential of LED lighting.
