7S to 16S High-Accuracy Battery Monitor and Protector

15/09/2023

The MP279x ICs, is a robust family of battery management analog front-ends (AFEs) that provide a complete AFE monitoring and protection solution. The MP279x supports up to 16 cells in series, and provides two separate analog-to-digital converters (ADCs) for synchronous voltage and current measurements. The high-side MOSFET (HS-FET) driver and robust HW protection functions come with configurable thresholds. Protections include over-current protection (OCP), short-circuit protection (SCP), battery and cell over-voltage protection (OVP), battery and cell under-voltage protection (UVP), over-temperature protection (OTP), and under-temperature protection (UTP). The MP279x also integrates internal balancing FETs to equalize mismatched cells while offering the option to control external FETs for a higher balancing current.

Main Features

MP2787: 7-Cell to 16-Cell, High-Accuracy Battery Monitor with Coulomb Counting

Voltage Measurements for 7 to 16 Series Cells
4 NTCs and die temperature measurements
Internal balancing current up to 58mA
External balancing with transistor or MOSFET can support higher current
3.3VRegulated output, up to 50mA
< 1uA quiescent current at shutdown mode with 3.3V LDO turned off

MP2790: 7-Cell to 10-Cell, High-Accuracy Battery Monitor and Protector with Coulomb Counting

Voltage Measurements for 7 to 10 Series Cells
Current Measurements with Accuracy: ±1.5% (-40° to 85°C, ± 100mV Sense Range)
3 NTCs and die temperature measurements
Internal balancing current up to 58mA
External balancing with transistor or MOSFET can support higher current

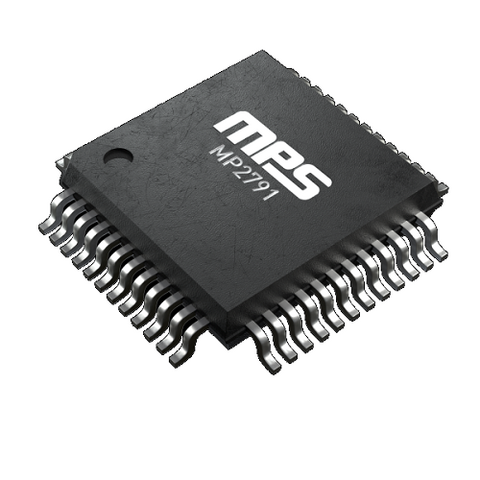

MP2791: 7-Cell to 14-Cell, High-Accuracy Battery Monitor and Protector with Coulomb Counting

Voltage Measurements for 7 to 14 Series Cells
4 NTCs and die temperature measurements
Internal balancing current up to 58mA
External balancing with transistor or MOSFET can support higher current
3.3VRegulated output, up to 50mA

MP2796: 7-Cell to 16-Cell Battery Monitor and Protector

Voltage Measurements for 7 to 16 Series Cells
Current Measurements with Accuracy: ±1.5% (-40° to 85°C, ± 100mV Sense Range)
4 NTCs and die temperature measurements
Internal balancing current up to 58mA
External balancing with transistor or MOSFET can support higher current

MP2797: 7-Cell to 16-Cell, High-Accuracy Battery Monitor and Protector with Coulomb Counting

Voltage Measurements for 7 to 16 Series Cells
4 NTCs and die temperature measurements
Internal balancing current up to 58mA
3.3VRegulated output, up to 50mA
Integrates High Side N-FET driver
1 x High Voltage and 2 x Low Voltage GPIOs
