3A, I2C-Controlled Switching Charger with NVDC Power Path, USB OTG, and Enhanced ADC

07/01/2022

The MP2723A is an I2C-controlled narrow-voltage DC (NVDC) switching charger with USB on-the-go (OTG) mode and an enhanced analog-to-digital converter (ADC) for single-cell Li-ion and Li-polymer batteries. It operates across a 3.7V and 5.5V input voltage (VIN) range, and provides a 320mA to 3000mA configurable fast-charge current, as well as USB OTG with an adjustable output from 4.8V to 5.5V.

The charger provides various safety features for battery charging and system operations, including configurable JEITA for battery temperature protection, battery charging safety timer, thermal regulation, thermal shutdown, watchdog monitoring I2C operation, and input/system over-voltage protection (OVP). The device provides disabled battery FET (BATTFET) control to enter shipping mode, as well as a system reset function via the DISC pin. The MP2723A is available in a QFN-26 (3.5mmx3.5mm) package, and is designed for smart phones, tablet PCs, point of sale (POS) machines, wireless cameras, wireless speakers, and other portable device applications.

Main Features

  • 3.7V to 5.5V Operating Input Voltage (VIN) Range
  • Up to 22V Sustainable Voltage
  • High Battery Discharge Efficiency with 14mΩ BATFET up to 8.5A
  • NVDC Power Path Management
  • Integrated ADC for VIN, IIN, VBATT, VSYS, ICHG, and VNTC
  • 13μA Low Battery Leakage Current in Shipping Mode
Documents Tech question

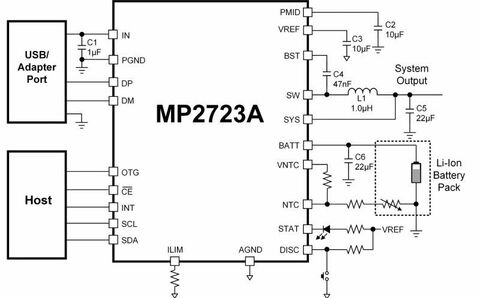

MPS MP2723a tac

3A, I2C-Controlled Switching Charger with NVDC Power Path, USB OTG, and Enhanced ADC

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

  • 25 Mobile Wearables

    Mobile & Wearables

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 1681440739

    Power management ICs

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MPS MP2723 A At a Glance
