36V, Standalone Switching Charger with Integrated MOSFETs for Multi-Cell Series Battery Pack

15/11/2024

The MP2658 is a highly integrated switching charger designed for portable devices with different battery chemistries. The MP2658 supports up to 7-cell series Li-ion, Li-polymer, and LiFePO4 battery packs. It also supports lead-acid, super capacitor, NiMH, and NiCd battery packs from 2V to 31V. The device achieves up to 3A of charge current (ICC) with any battery regulation voltage (VBATT_REG).

The MP2658 operates under a maximum 36V DC input voltage and hold-off voltage up to 45V. When an input power supply is present, the MP2658 charges the battery with four phases: trickle charge, pre-charge, constant current (CC) charge, and constant voltage (CV) charge.

Main Features

  • Up to 36V Operating Input Voltage (VIN)
  • 45V Max Sustainable Voltage When Not Switching
  • Up to 3A of Charge Current (ICC)
  • Supports Any Battery Regulation Voltage (VBATT_REG) from 2V to 31V
  • 0.5% VBATT_REG Accuracy
  • Integrated Input Current (IIN) Sensing and Reverse Blocking FET
  • Internal Loop Compensation
  • IIN Limit Regulation
Documents Tech question

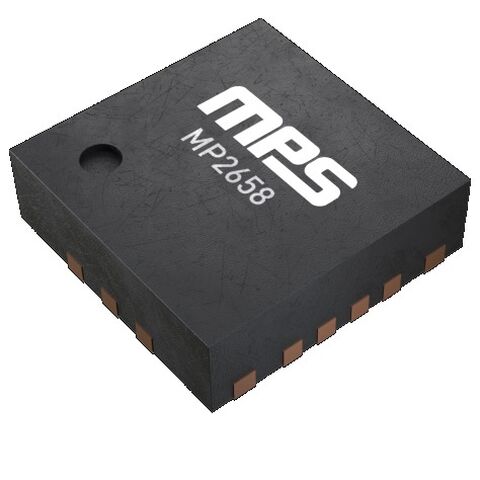

MPS MP2658

36V, Standalone Switching Charger with Integrated MOSFETs for Multi-Cell Series Battery Pack

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 25 Mobile Wearables

    Mobile & Wearables

Technologies

  • Shutterstock 1668063934

    Battery chargers

  • Shutterstock 1681440739

    Power management ICs

Monolithic Power Systems

Monolithic Power Systems provides small, highly energy efficient, easy-to-use power solutions for systems found in industrial applications, telecom infrastructures, cloud computing, automotive, and consumer applications.

Read more
Monolithic Power Systems Logo

Documents

  • MPS MP2658 productsheet
