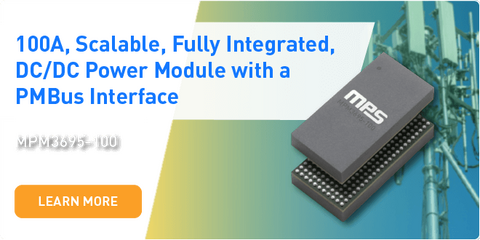

100A, Scalable, Fully integrated DC/DC Power Module with PMBus

18/06/2021

The MPM3695-100 is a 100A, scalable, fully integrated power module with a PMBus interface. The device offers a complete power solution that achieves up to 100A of output current, with excellent load and line regulation across a wide input voltage range. The MPM3695-100 operates at high efficiency across a wide load range and can be paralleled to deliver up to 800A of current.

Main Features

  • 3.2V to 16V Input Voltage Range with External 3.3V VCC Bias
  • 4V to 16V Input Voltage Range with Internal VCC Bias
  • 0.5V to 3.3V Output Voltage Range
  • 100A Continuous Current for Outputs Up to 1.8V
  • 60A Continuous Current for 3.3V Output
  • Parallelable Up to 800A with Active Current Balancing
  • Auto-Interleaving for Parallel Operation
  • Output Voltage Remote Sensing
  • ±1% Reference Voltage Accuracy (-40°C to +125°C)
  • PMBus 1.3 Compliant
  • Telemetry Readback including VIN, VOUT, IOUT, Temperature, and Faults
  • Configurable via the PMBus:
  • Output Voltage
  • Soft-Start Time
  • Over-Current (OC), Over-Temperature (OT), Over-Voltage (OV), Under-Voltage (UV), Under-Voltage Lockout (UVLO) Limits
  • PWM Mode
  • Switching Frequency
  • Available in a BGA (15mmx30mmx5.18mm) Package
