In order to solve the difficulties encountered in the power conversion of the power energy system, MINMAX's ultra-high isolated DC-DC converter modules provide industry standard packages, including SMD, SIP, DIP, 2"x1" packaging, designed for electricity and energy applications

To reduce overall PCB layout area, it has become a trend to choose high power density DC-DC converters.

Isolated DC-DC Power Converters for Railway Certification: An In-depth Analysis of Uncompromising Performance

MINMAX Railway Certification DC-DC Converter Series

In order to solve the difficulties encountered in the power conversion of the power energy system, MINMAX's ultra-high isolated DC-DC converter modules provide industry standard packages, including SMD, SIP, DIP, 2"x1" packaging, designed for electricity and energy applications.

Download your 2023 Railway Power Solution Guide containing intro of railway certification, performance of rail certified products and railway certified power solutions

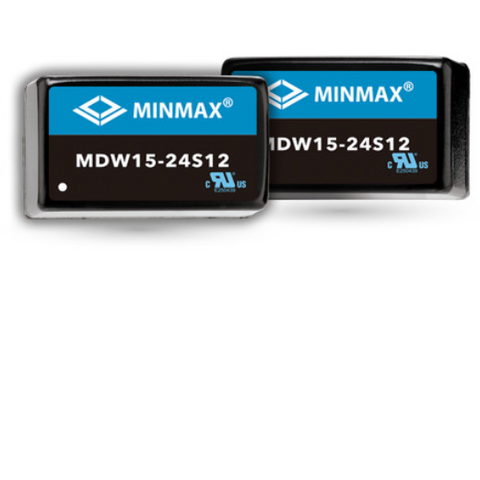

The MDW15 series gives designers the flexibility to match the choice of converter to specific application requirements. The high power density of MDW15 series, at 74W/in3, is expected to make it popular with manufacturers of industrial, transportation and renewable energy equipment where space-constrained is critical. This product offers a full 15 Watt isolated DC-DC converter within a small encapsulated DIP-16 package which occupied only 0.5in2 of PCB space. There are 18 models available for 12, 24 & 48VDC with wide 2:1 input voltage range. Further features included under-voltage protection, overload protection, short circuit protection, very low no load power consumption, no min. load requirement and conducted EMI class A approved as well. High efficiency allows operating temperatures range of -40℃ to 85℃. All models have been qualified per the CB scheme with safety approvals to UL/cUL/IEC/EN 62368-1.

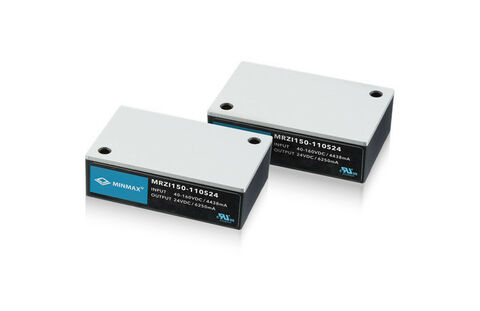

The MINMAX Railway Certified DC–DC Converter family with powers ranging from 3 to 150 W are designed to meet stringent requirements and harsh environmental testing and are specifically designed to be the primary insulation barriers for railway DC power architectures.

The MINMAX MJWI06C series is a new range of high performance DC/DC converters featuring a wide 4:1 input range in a chassis-mount package with terminal strip connections and optional DIN-Rail mounting offer system designers the opportunity to eliminate the power board request in the field application.

In the past, Minmax brand-labeled its products to penetrate the Eu-market. Nowadays, Minmax decided to start a campaign adding more importance to their own brand “Minmax".

Railway certified DC-DC converter 3-150W Overview

MINMAX Railway DC-DC Converter family designed to meet stringent requirements and harsh environment.

The MDWI15 series gives designers the flexibility to match the choice of converter to specific application requirements.

The AMF-07 series is a new generation of fully encapsulated AC-DC power supply modules with ultra-compact size for higher power density and space saving.

The MINMAX AMF-15 series is a new generation of fully encapsulated AC-DC power supply modules with ultra-compact size for higher power density and space saving.

The MINMAX AMF-60 series is a new generation of fully encapsulated AC-DC power supply modules with ultra-compact size for higher power density and space saving.

The MINMAX AMF-30 series is a new generation of fully encapsulated AC-DC power supply modules with ultra-compact size for higher power density and space saving.

The MINMAX MSCEU01-HI series is a new range of high performance 1W DC/DC converter within encapsulated SMD-14 package which specifically design for high isolation applications where reinforced insulation and high working voltage are required.
