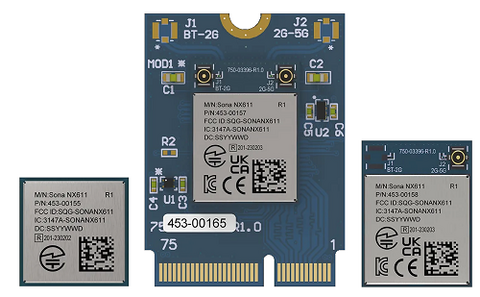

WiFi 6 module Sona™ NX611

28/02/2025

The Sona™ NX611 advanced module family leverages the NXP IW611 chipset and is specifically designed to meet the rigorous demands of industrial IoT applications, offering unparalleled performance, reliability, and security.

The Sona NX611 is the latest example of Ezurio’s Premium Wi-Fi Advantage, which provides customers with access to meticulously engineered hardware and software, global support, and regulatory services all under one roof. The module combines Wi-Fi 6 (802.11ax) and Bluetooth 5.4 capabilities, ensuring high-speed data transmission and enhanced wireless communication. It supports dual-frequency operation on 2.4 GHz and 5 GHz bands, achieving data rates up to 600 Mbps; this makes it an ideal solution for high-bandwidth industrial environments requiring robust and efficient wireless connectivity. Also, the module operates within the industrial temperature range of -40°C to +85°C, guaranteeing reliable performance in diverse environmental settings.

Available in several form factors, including:

  • SIP package
  • M.2 1216 SMT
  • M.2 2230 Key E pluggable options
  • 12mm x18mm integrated chip antenna solution

Main Features

  • Dual-Band Wi-Fi 6 1x1
    - 2.4/5 GHz spectrum availability for flexibility and higher performance
  • Reliable Connectivity
    - 802.11ax Wi-Fi with integrated PA and LNA combined add up to a reliable module for harsh RF conditions
  • Software Flexibility and Speed to Market
    - Open-Source software and Linux Backports ensures compatibility with a wide variety of Linux kernels and latest security standards. With Android 12/13 support.
  • Industrial Operating Range
    - Designed to the industrial temperature range of -40ºC to +85ºC for every component utilized
  • Global Approvals
    - Carries FCC, IC, CE, UKCA, RCM and Bluetooth SIG approvals. Capability to support worldwide regulatory certification.
Documents Tech question
Ezurio EZ PB SONA NX611

WiFi 6 module Sona™ NX611
