One of the smallest crystals in our key product range, available at frequencies of 24.0 ~ 60.MHz, the ultra-miniature ceramic package of the GSX-213 makes it ideal for space-dependent applications such as wearables, smartcard, NFC and Bluetooth.

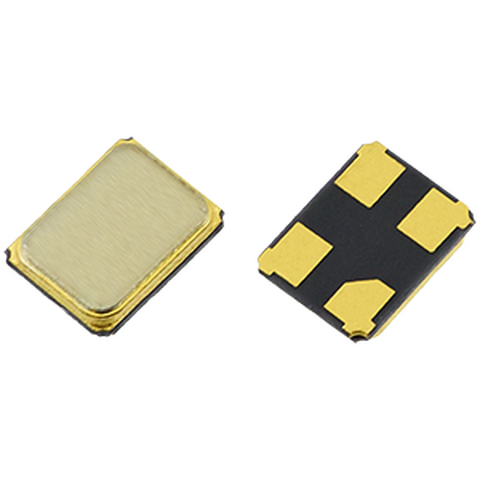

The GSX-213 surface mount crystal features tiny 1.6 x 1.2 x 0.35mm seam sealed package with a standard four pad configuration. The seam seal of this package helps achieve excellent long-term stability, resulting in excellent ageing specifications of only ±1ppm maximum for the first year. The metal lid of the package can also be grounded for EMI reduction.
This surface mount crystal offers a range of circuit conditions and tight calibration tolerance and temperature stability options, over a choice of operating temperature ranges including -30 to +85°C.
Golledge is a leading global supplier of frequency control products to the worldwide electronics industry offering a wide range of products incorporating all manner of timing components including: crystals, oscillators, TCXOs, VCXOs, OCXOs, SAW and crystal filters, duplexers and RTC modules.
