Ultra low power IoT modules for Cat-NB2 technologies

01/07/2021

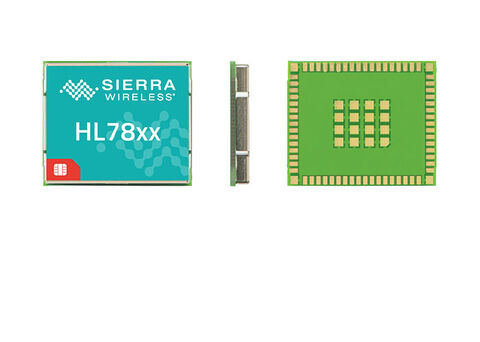

The New Sierra Wireless HL7810/12 Series – The Next Generation of LPWA


Sierra Wireless’ new HL7810 and HL7812 LTE-M and NB-IoT modules for the industrial IoT offer the lowest power consumption in their class to support Cat-M1 and Cat-NB2 networks around the world and reduce operational and device maintenance costs. In addition, the modules feature a high transmit power of at least 23dBm to ensure coverage in even challenging locations such as remote rural areas and deep underground.

The modules also offer the highest level of end-to-end security, minimizing the risk of IoT solutions. Security is designed in from the start, with encrypted security keys now stored in a secure element for an added layer of protection from the edge to the cloud.

Main Features

  • Security: Encrypted security keys are stores in a hardware secure element for an added layer of solution protection, from the edge to the cloud.
  • Ultra-low power: Floor currents under 2uA when in PSM mode, and as low as 30uA when in eDRX mode.
  • High transmit power: Transmit power of 23dBm (HL7810 and HL7812) and 26dBM (HL7845) to ensure resilient connection at challenging locations such as underground and remote areas.

Common HL78 Features:

  • Simple edge and cloud APIs to facilitate development
  • Embedded SIM with optional Sierra Wireless Smart Connectivity services
  • Worldwide bands to keep your deployments connected (plus 2G fallback on the HL7812)
  • Common CF3 module footprint and pin-outs
  • Secure manufacturing process for credentials and device security features
Documents Tech question
Sierra Wireless HL78xx

Ultra low power IoT modules for Cat-NB2 technologies

  • Features
  • Applications
  • Technologies
  • Documents

Applications & Markets

  • 23 E mobility

    E-Mobility

  • 9 Remote Monitoring

    Remote Monitoring

  • 6 Wireless Communication

    RF & Wireless communication

  • 2 Energy Utilities

    Energy & Utilities

Technologies

  • Shutterstock 1047068560

    Wireless connectivity SoCs & modules

Documents

  • HL7810 Global LPWA Module for Industrial IoT
  • HL7812 LTE-M and NB-IoT Module for Industrial IoT
