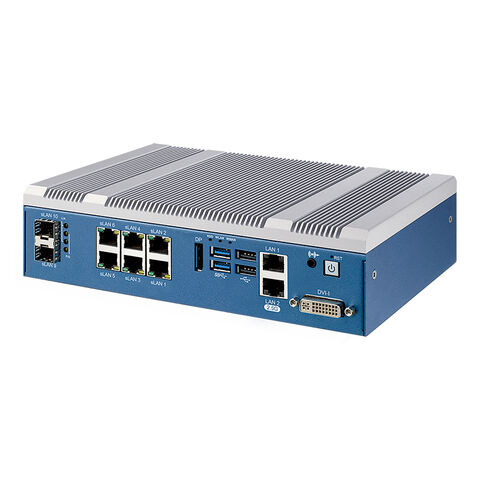

Ultra-compact Fanless LAN Switch System

07/10/2022

The ESP-1000 Ultra-compact Fanless LAN Switch System is powered by Intel Atom® x6425RE processor delivering up to 55% faster compute and 2.7X better 3D graphics performance than the former generation solution. The system features 2 GigE LAN and an 8-port industrial Layer 2 Unmanaged Ethernet Switch. Furthermore, ESP-1000 is equipped with rich I/O interfaces including 4 COM, 4 USB, 1 SIM Card socket and 1 M.2 for expansion, making it ideal for Smart Factory, Machine Vision, Public Security and any Industry 4.0/AIoT applications.

Main Features

  • Quad-Core Intel Atom® x6425RE processor (Elkhart Lake) delivers up to 55% faster compute and up to 2.7X better 3D graphics performance than the former generation solution
  • DDR4 3200MHz memory, up to 32GB
  • 1 Independent 2.5GigE LAN supports Intel® Time sensitive Networking (TSN) and 1 independent GigE LAN supports 10/100/1000 Mbps data transfer
  • Industrial 8-port Layer 2 Unmanaged Ethernet Switch with 6 10/100/1000 Base-T(X) ports and 2 100/1000 Base SFP ports
  • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
