Two cutting-edge solutions designed to revolutionize your touch control needs

15/09/2023

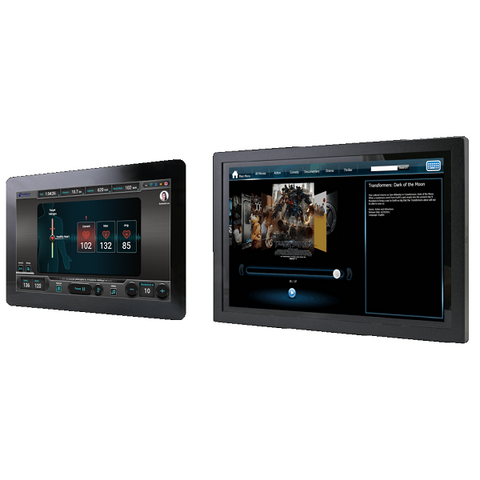

Introducing the OFT-10W04, a 10-inch open-frame multi-touch panel PC driven by Intel® Celeron™ J3455 processors. This cutting-edge device boasts a Full HD TFT LCD display, tailored to excel in touch control applications. Its streamlined, fully flat design, coupled with an easily maintainable panel, makes it an optimal choice for kiosks and beyond. Well-suited for deployment across industrial, medical, and retail environments, including kiosks, vending machines, control cabinets, and smart homes. A multitude of installation kits, encompassing wall and panel mounting alternatives, caters to diverse application scenarios.

Meet the SID-10WR1, a 10.1-inch semi-industrial panel PC, powered by RockChip RK3288 processors, engineered to deliver heightened processing capabilities and equipped with a flexible OS support framework. Originally crafted for KIOSK and HMI applications, the SID Series seamlessly adapts to a myriad of field-specific requirements, demonstrating unwavering performance.

Main Features

OFT-10W04: 10.1" Open Frame Tablet

  • Intel® Celeron™ Processor J3455
  • 4GB RAM32GB eMMCProjective Capacitive Touch10/100/1000 Ethernet M.2 B-Key(3042) connector socket802.11 a/b/g/n/ac Wireless LANWindows 10 supported DC 12~24V Input

SID-10WR1: 10.1" Semi Industrial Panel PC with Rockchip RK3288 SoC

  • 10.1” TFT-LCD, WXGA, 1280 x 800
  • Projective Capacitive Multi-Touch
  • IP65 Front Panel
  • RockChip RK3288 Cortex-A17 Quad Core 1.6GHz
  • 2GB DDR3L on board
  • 16GB eMMC on board
  • 1 x 802.11 b/g/n Wireless LAN and Bluetooth 4.0
  • 1 x 10/100/1000 Ethernet
  • 2 x USB Type A, 1 x HDMI output, 1 x Head phone jack
  • Wide range DC 12~24V DC input
  • Optional Powered LAN (802.3AT)
