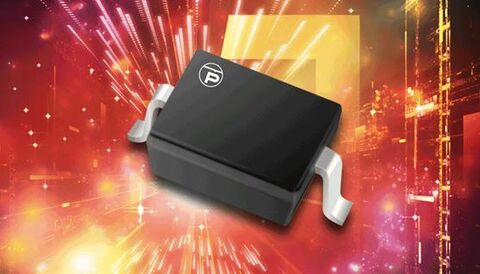

TVS Diode Arrays for a Myriad of Applications

10/06/2022

ProTek Devices provides three types of TVS diode arrays that include standard capacitance (less than 100pF), low capacitance (5-100pF) and ultra-low capacitance (less than 5pF) devices. In addition, ProTek Devices’ TVS arrays product line provides circuit protection against transients caused by electrostatic discharge (ESD), electrical fast transients (EFT), tertiary lightning and other induced voltages.

These devices have been tested up to 40,000 volts of contact ESD conditions. In addition, ProTek's Standard TVS Arrays are designed to meet ESD immunity requirement IEC 61000-4-2 (Air - 15kV, Contact - 8kV), EFT immunity requirement IEC 61000-4-4 (40A, 5/50ns) and Surge (Line to Ground and Line to Line) immunity requirement IEC 61000-4-5 (Levels vary depending upon product series).

Main Features

  • Multiline/Port Protection
  • Bidirectional and Unidirectional Configurations
  • Up to 9000 Watts Peak Pulse Power - 8/20µs
  • Wide Range of Package Sizes: DFN-2-0201 to SOIC-20
  • Operating Voltages from 1V - 36V
  • Low Capacitance 30pF to 0.15pF
  • Low Leakage Current
  • RoHS and REACH Compliant
Documents Tech question
Protek TVS diode arrays

TVS Diode Arrays for a Myriad of Applications

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 24 Telecom

    Wired data & telecom

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 1831382515

    Circuit protection & discrete semiconductors

Protek

ProTek Devices™ offers a full range of overvoltage protection and overcurrent protection components including transient voltage suppressor arrays (TVS arrays), avalanche breakdown diodes, steering diode TVS arrays, PPTC devices, and electronics SMD chip fuses.

Read more
Protek Logo

Documents

  • Pro Tek Industrial Shortform Catalog
