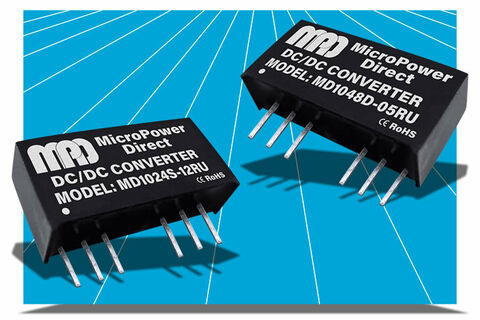

Tightly regulated, 10W SIP DC/DC Converters

09/07/2021

The MD1000RU series provides 10W of tightly regulated output power from an industry-standard SIP package. These low-cost single and dual output DC/DC converters provide the miniature size, reliable performance, high power density, and economy required by a very wide range of board-level power distribution applications.

Fourteen models operate from 4:1 inputs of 9 – 36 VDC, and 18 – 75 VDC, providing single and dual outputs of 5, 12, 15, 24, ±5, ±12 or ±15 VDC. Standard features include efficiency to 89% an input/output isolation of 2,250 VDC, a remote on/off control input, and low noise operation. All models are protected for over-voltage, over-current, and short circuit faults. The MTBF of the MD1000RU series (per MIL HDBK 217F) is over 1.9 Mhours.

Main Features

  • 10W Output Power
  • Miniature SIP Package
  • Ultra-Wide 4:1 Input Range
  • Short Circuit Protection
  • 2.25kV I/O Isolation
  • 14 Standard Models
  • Remote On/Off Control
  • -40°C to +85°C Operation
  • Single & Dual Outputs
Documents Tech question
MPD MD1000 RU

Tightly regulated, 10W SIP DC/DC Converters

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • Shutterstock 1090175828

    Marine

  • 27 White Goods Home Appliances

    White Goods & Home Appliances

Technologies

  • Shutterstock 2049802019 Converted

    DC/DC converters

MPD

MicroPower Direct ( MPD ) growth is driven by a commitment to delivering innovative, high quality power conversion products at the lowest possible prices.

Read more
Micropower Direct Logo

Documents

  • Micropower direct MD1000 RU Datasheet
