Thinfilm battery CP042350

09/10/2020

Power made in Switzerland

Small in size, our new 3V Thinfilm battery CP042350 is ideal to create smaller electronic devices since the thickness of the battery of just 0.42mm is much less than that of conventional lithium batteries.

With a capacity of 28mAh and an average weight of 0.86g, this next-generation battery can be used in a wide range of industrial, medical and consumer applications such as smart cards, smart textiles, price tags, smart packaging labels, smart wristbands, sensors, RFID etc. Thanks to its enhanced Lithium Manganese composition, the energy density of CP042350 is as twice as high as comparable products on the market.

Swiss Made production of the 50×23 mm Thinfilm battery CP042350 has already started. Free CP042350 samples are available. Customizations of up to 70×70 mm for individual requirements are possible. A rechargeable series is currently in development and samples will be available from end 2019 onwards.

Documents Tech question

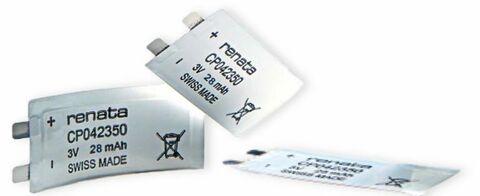

Renata thinfilm battery

Thinfilm battery CP042350

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Chemical system: Li/MnO2
  • Nominal Voltage: 3.0 V
  • Rated Capacity: 28.0 mAh
  • Bendability: > 1000 cycles / Ø 50mm
  • Internal Resistance: < 30Ω (at 50% SOC and 23°C) DC pulse of 12.5 mA, 1 s
  • Operating/Storage Temperature: -40°C … +60°C
  • Self Discharge at 23°C: < 5% / year
  • Thickness ( t ): 0.42 mm (±0.03mm)
  • Length ( l ): 50.1 mm (±0.2mm)
  • Width ( w ): 23.1 mm (±0.2mm)
  • Average Weight: ~ 0.86 g

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 25 Mobile Wearables

    Mobile & Wearables

Technologies

  • Shutterstock 585356870 Converted

    Batteries

Renata Batteries

Renata became a leading manufacturer and supplier of coin cells for watches and many electronic product areas such as medical technology, RFID, radio control, metering, and many more.

Read more
Renata Logo

Documents

  • Renata CP042350 datasheet
