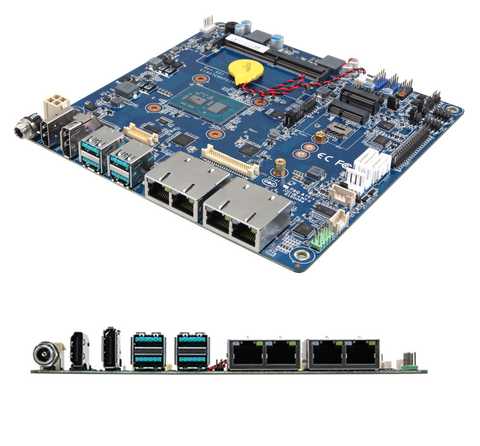

Thin Mini ITX Embedded Industrial Motherboards with Intel Atom x6000E & Celeron Processor

05/05/2023

Thin Mini ITX motherboard EMX-EHLP features flexible I/O supports 2 x USB 3.1 Gen.2 and 2 x USB3.1Gen 1 at I/O, 4 x USB 2.0, 4 x RS-232, 2 x RS-232/422/485 with DC power input 12~ 24V. It supports one DP and one HDMI display and LVDS co-lay with DP for all kinds of applications. This motherboard design with two M.2 slot: M.2 B-Key SATA/PCIe/USB supports WWAN+GNSS or SSD and E-Key support Wifi module, PCI-e x1 and USB2.0 signal. Also, EMX-EHLP offers four Intel 2.5 Gigabit Ethernet with TPM2.0.

Main Features

  • Intel Atom x6000E & Celeron Processor Thin Mini ITX
  • One 260-pin DDR4 3200MHz SO-DIMM socket, supports up to 32GB Max
  • DP++, HDMI, Dual channel 18/24-bits LVDS (co-lay eDP)
  • 4 x Intel I225/226LM 2.5 Gigabit Ethernet
  • Audio Codec & TI TPA3113D2 Stereo Class-D 8Ω/6W x 2 Audio Amplifier
  • 2 x USB3.2 Gen2 and 2 x USB 3.2 Gen 1 at I/O, 4 x USB 2.0 by pin header
  • 2 x SATA III, 2 x SATA Power, 4 x RS232, 2 x RS232/422/485, 16-bit GPIO
  • 1 x M.2 Key E 2230 support Wifi module, 1 x M.2 Key B support WWAN+GNSS or SSD
Documents Tech question
Avalue

Thin Mini ITX Embedded Industrial Motherboards with Intel Atom x6000E & Celeron Processor
