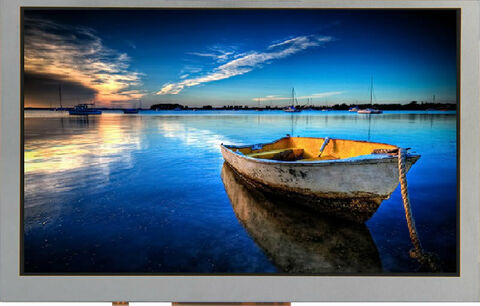

Alcom offers 4 high brightness models of 8.4" TFT panels made by our Taiwanese partner ONation. The 8.4" table of TFT's include also a fully compatible part to the obsolete Mitsubishi version. All panels are available with touch panel.
| Size | Resolution | Part Number | Module size (HxVxD) | Active area (HxV) | Interface | Brightness | B/L Life time | TP |
| 8.4 | 800 * 600 | OT084DSUDLV-00 | 203.0 X 145.9 X 5.7 | 170.4 X 127.8 | LVDS | 400 | 20 | No (Optional) |
| 8.4 | 800 * 600 | OT084DSUDLT-00 | 203.0 X 145.9 X 7.24 | 170.4 X 127.8 | LVDS | 350 | 20 | 4W-RTP |
| 8.4 | 800 * 600 | OT084ISUDLV-00 | 199.5 X 149.0 X 9.75 | 170.4 X 127.8 | LVDS | 600 | 40 | No (Optional) |
| 8.4 | 800 * 600 | OT084ISUDLV-02 | 199.5 X 149.0 X 9.75 | 170.4(H) X 127.8(V) | LVDS-6/8 bit | 1000 | 20 | No (Optional) |
| 8.4 | 1024*768 | OT084AXWDLV00 | 199.5(H)X149.0(V)X12.2(D) | 170.8032(H)X128.1024(V) | LVDS-6/8bit | 600 | 80 | No (Optional) |
ONation is a professional LCM manufacturer in Taiwan focused on small to medium size LCD modules.
