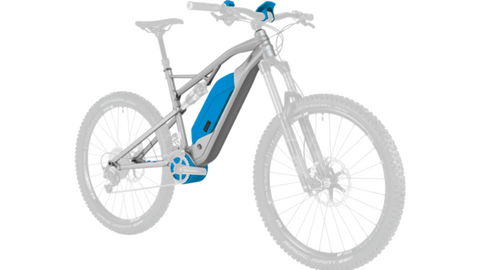

Typically, e-bike mid-mounted motors are driven by an electric motor and a combination of gears and planetary gears, which makes this type of mid-mounted motor clunky, heavy and noisy. More moving parts also mean more things that can break and act as a source of noise. TQ Group’s developed a lightweight and extremely compact motor design around the bottom bracket, consisting of only a few parts and making the motor virtually invisible. By dispensing with additional gears that cause friction, noise, wear and potential sources of error, the drive unit could be made even more efficient.
The BATTERY with 360 Wh was specifically developed for the HPR50 Drive Unit and combines maximum efficiency with a compact form. Thanks to the low weight of only 1,830 g, the kinematics of an analog bike can be retained.

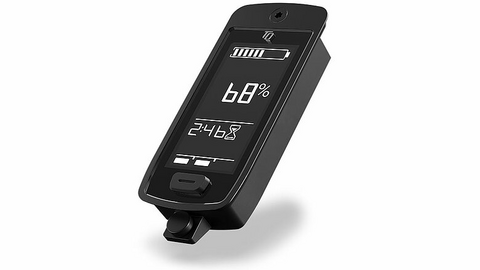

The DISPLAY is perfectly integrated into the frame and acts as the control center. Even in adverse lighting conditions it provides all the important information about the status of the battery, the selected riding mode, the available range and much more. With ANT+ connection you can easily connect your smartphone or bike computer.
The REMOTE gives you full control over the HPR50 system without the need to take your hands off the handlebars. It provides an intuitive and easy way to switch between the three support modes and the information shown on the display. In case the climb get’s especially steep, the walk mode supports you on the last meters to the summit.

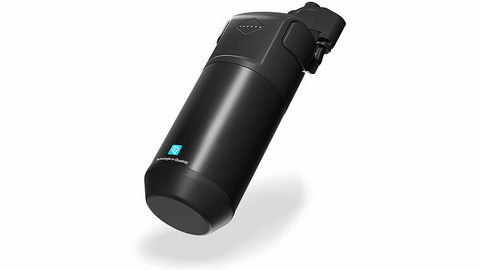

Only the size of a 500 ml water bottle, the lightweight Range Extender integrates nicely into the frame of your e-bike and easily fits into any standard bottle cage. Thanks to its Dual Charge Port, the Range Extender can be charged simultaneously with the main battery without the need to be removed from the frame. With a capacity of 160 Wh, the Range Extender has enough energy to extend your after-work laps to an epic all-day ride.
TQ offers Embedded Modules and systems based on ARM, x86, QorIQ Layerscape or Power Architecture in the form of embedded modules, Single Board Computers, Industrial PCs, modular solution platforms and finished systems.
