System-on-Chip for long distance video distribution

14/01/2021

The VS3000 is a highly integrated SoC with the highest performing long distance video distribution solution in the AV market. It converges uncompressed HDMI2.0 4K60 4:4:4, audio, 1Gbps Ethernet, USB2.0, controls and power, with zero latency over a standard CAT6a cable for up to 100m/328ft.

The VS3000 incorporates advanced features that bring more benefits to manufactures, integrators and ultimately to end users. Integrated features include: HDBaseT port duality (RX/TX), HDMI local loop, HDCP, switching core, advanced audio functionalities, cloud connectivity and much more.

Documents Tech question

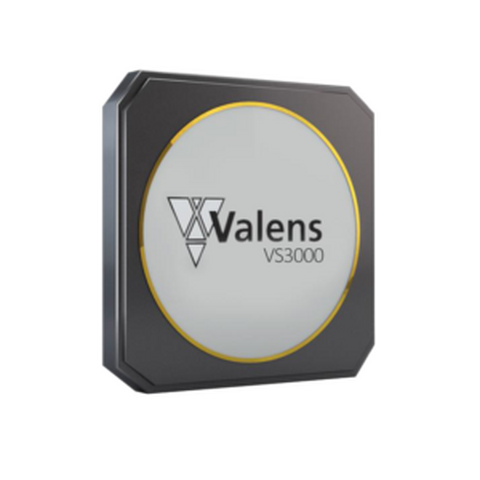

Valens VS3000 300x300

System-on-Chip for long distance video distribution

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Convergence of several native interfaces over the same HDBaseT link, including:
    - Uncompressed HDMI 2.0 streams using 4K@60 4:4:4, 8-bit resolution over an HDBaseT link, with 16Gbps downstream and 2Gbps upstream
    - Audio I2S-4 and S/PDIF
    - 1Gbps Ethernet
    - USB 2.0
    - Control & data formats, including integrated
  • I2C, RS-232 and CIR
    - Power over HDBaseT
  • HDBaseT Port Duality, enabling a single hardware design to support both TX and RX (configured through hardware or software)
  • Highly integrated chipset
    - Concurrent "HDMI in" and "HDMI out" native interfaces
    - Audio Extract and Insert functionality on “HDMI in” and “HDMI out”
    - Processing of HDCP 1.4, HDCP 2.2 and HDCP2.3
  • Full backward compatibility with existing Valens’ chipsets (VS1xx and VS2xxx)

Applications & Markets

  • 20 Entertainment Gaming

    Entertainment & Gaming

  • 13 AV Broadcast

    A/V & Broadcast

Technologies

  • Shutterstock 1666017652

    Audio, video, multimedia

Valens

Valens is the inventor and world leader in HDBaseT technology, the only solution for the transmission of high-throughput video and data streams in the AV, automotive, industrial and consumer marketplaces.

Read more
Valens 2024 Logo

Documents

  • Valens VS3000 Product Brief
