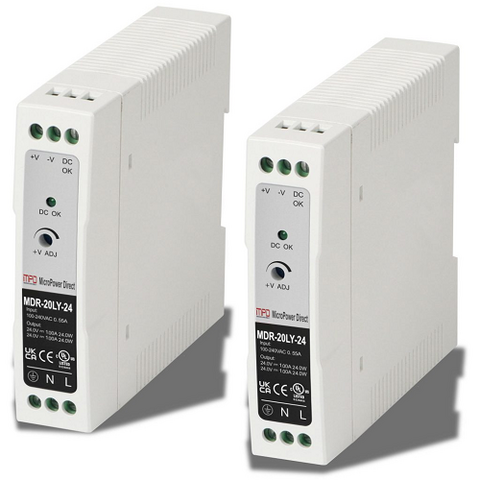

The MDR-20LY Series are a sleek, space-saving 20W DIN-rail mount AC/DC converter. Our newest addition is designed to deliver compact, reliable, and energy-efficient performance for a wide range of industrial and commercial applications. This series is engineered for high efficiency, boasting up to 89% power efficiency under normal operating conditions. The MDR-LY series includes a 10W, 20W, 40W, 60W and 100W version.
The MDR-20LY series supports a universal AC input range of 85-264VAC and is available in three different output voltage configurations – 12V, 24V, and 48V – each providing reliable power with current ratings from 1A to 4.2A, depending on the model. Additionally, the power supply is equipped with robust protection features, including overload and short-circuit protection, ensuring automatic recovery in case of power issues and providing reliable operation under demanding conditions.
Designed for quiet and maintenance-free performance, the MDR-20LY series is cooled through free air convection. This series is suitable for a wide range of environmental conditions, operating efficiently in temperatures ranging from -20°C to +70°C. Furthermore, it meets international safety standards, including UL 60950-1, TUV EN60950-1.
MicroPower Direct ( MPD ) growth is driven by a commitment to delivering innovative, high quality power conversion products at the lowest possible prices.
