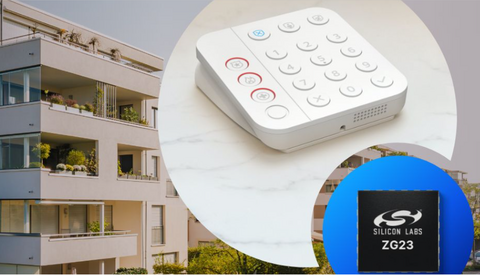

Silicon Labs Z-Wave 800 Series

04/03/2022

The Z-Wave 800 series is the latest edition of the world’s most popular Z-Wave wireless IoT mesh protocols for smart homes. The Z-Wave 800 series enables device makers to develop exceptional smart home experiences through reliable Sub-GHz wireless, robust security, battery friendly power consumption, and easy Smart Start commissioning. The Silicon Labs ZG23 and ZGM230S hardware are the most secure Sub-GHz wireless solution featuring the Z-Wave 800 wireless mesh protocol. The Z-Wave 800 series is designed to meet the demands of smart home, hospitality, and multi-dwelling unit (MDU) IoT segments today and in the future. It is an optimal wireless protocol for applications where long-range, high performance, low power, and increased device security are vital – these include smart lighting, thermostats, door locks, garage door openers, switches, home cameras, sensors and more.

Main Features

  • Z-Wave connectivity
  • RF pin for external antenna
  • +14 dBm TX power
  • -110.9 dBm RX sensitivity @100 kbps
  • 32-bit ARM Cortex-M33 core at 39 MHz
  • 512/64 kB of Flash/RAM memory
  • Advanced security features
  • Rich set of MCU peripherals
  • Integrated DC-DC converter
  • Up to 34 GPIO pins
  • -40 to 85 °C
  • 6.5 mm x 6.5 mm
