Series of Precision Resistor Array Products

07/06/2024

The TPR860x series is a quad-resistor matched array with outstanding resistance matching performance and extremely low temperature drift, catering to the voltage and current signal acquisition needs of industrial control, precision measurement, and instrumentation applications.

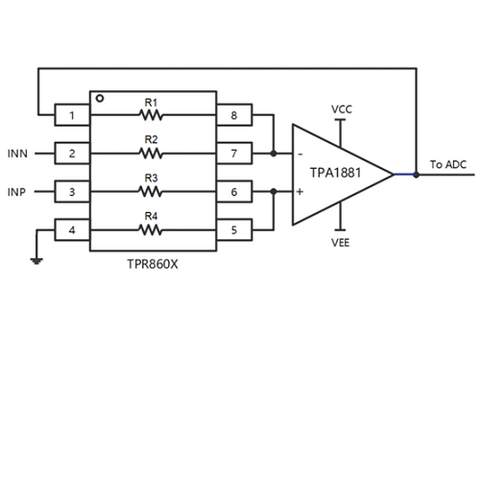

The TPR860x series integrates four independent resistors designed to meet the precise matching requirements of multiple resistance values in various applications. When paired with high-precision operational amplifiers, the resistor array achieves accurate gain settings for precise signal acquisition.

Main Features

TPR860x Product Performance

Matching Performance:

  • TPR8601A: 0.0125% Matching at −40°C to +125°C
  • TPR8600/1/2: 0.025% Matching at −40°C to +125°C
  • TPR8603: 0.03% Matching at −40°C to +125°C
  • Matching Temperature Drift: 0.1 ppm/°C (Typical), 1 ppm/°C (Max)
  • perating Voltage Range: −60 V to +60 V
  • Operating Temperature Range: −40°C to 125°C
Documents Tech question
3peak TPR860x

Series of Precision Resistor Array Products

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 8 Instrumentation

    T&M and instrumentation

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Screenshot 2022 05 04 130706

    Timing & frequency control

3Peak

3PEAK is committed to the research and development of high-performance, high-quality, and highly reliable integrated circuit products, including signal chains, power analog chips, mixed-signal front-ends, and embedded processors to provide customers with all-around solutions.

Read more
3peak Logo

Documents

  • 3peak TPR860 Datasheet
