- Industry standard footprint with reinforced insulation
- Power Range: Up to 24W
- Height: 16.5mm Max
- Footprint: 17.7mm x 13.5mm Max
- Topology: Forward and Flyback
- >8.0mm creepage, 3.0kVrms Isolation
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

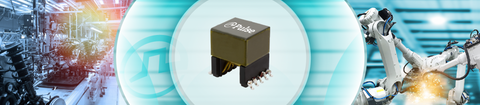

The new EP13R uses the industry standard EP13 footprint but with an increased bobbin flange to enable reinforced safety insulation, 8.0mm of creepage distance and 3000Vrms isolation. Maintaining the standard footprint enables customers to minimize their PCB footprint, improve the system power density but still meet all of their safety agency requirements. The EP13R series is comprised of twelve part numbers designed for both forward and flyback topologies with input voltages ranging from 48vdc (33-75v) to universal AC (85-265v) and outputs of 3.3v, 5.0v & 12v. With power levels up to 24W the EP13R series is suitable for a wide-range of applications in the industrial segment where high isolation power supplier are critical to isolate sensitive circuits from the noisy environment and to ensure user safety. The EP13R platform can also be made available as a customized PN for as an IATF compliant part for low to mid power automotive applications including battery management systems (BMS), HEV/EV inverters, engineering control unit (ECU), on board charger (OBC) and DC/DC converter.
