Quartr brick non-isolated buck/boost DC/DC converter

17/07/2020

NYWQ5 buck/boost converter is provided with encapsulated quarter brick package for full environment protection. It is designed with full protection features against excessive voltage, current, and temperature; with the ultra-high conversion efficiency of 96%. The NYWQ5 converter is ideally suited for use in communications, industrial, test and measurement, high-reliability and various levels of battery charging applications.

NYWQ5 has optional active current share feature to allow parallel operation of multiple converters. The output current limit is adjustable for battery charging applications. The output voltage is set to 0V at the factory and it can be programmed to any voltage between 0V and 60V by PMBus programming or external resistor/voltage programming.

Documents Tech question

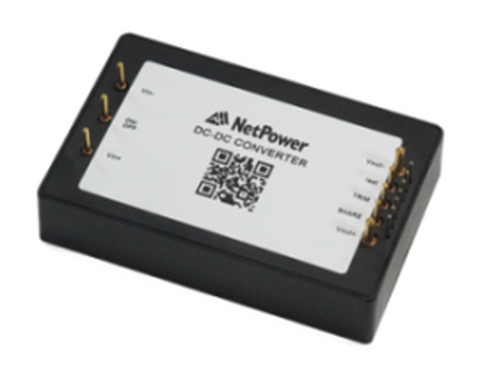

Netpower NYWQ5000x025

Quartr brick non-isolated buck/boost DC/DC converter

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Efficiency up to 96%
  • Wide input and output voltage ranges
  • Adjustable output current limit for battery charging
  • Optional active current share
  • Optional Digital (PMBus) interface
  • Wide operating temperature range from -40°C to +100°C

Technical Specifications:

  • Input Voltage Range: 9-60VDC
  • Efficiency (typical input & full load): 96%
  • Output Regulation (line and load): 0.2%,0.2%
  • Output Ripple Voltage:10 mV (12Vo)
  • Output Ripple Frequency:250 kHz
  • Operating Temperature: -20°C~+100°C,-40°C~+100°C

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 8 Instrumentation

    T&M and instrumentation

Technologies

  • Shutterstock 2049802019 Converted

    DC/DC converters

Netpower

Netpower is a technology leader of open-frame and encapsulated high efficiency and high density DC-DC and AC-DC power converters.

Read more
Netpower Logo

Documents

  • NYWQ5 Datasheet
