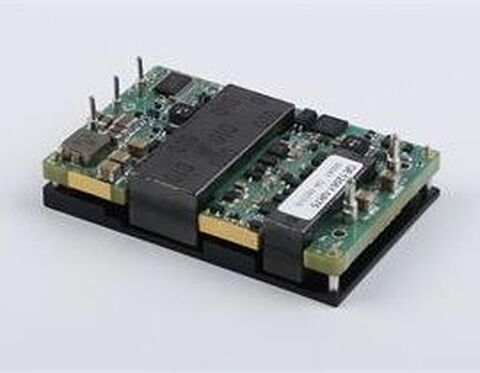

Compared with the previous high power 40-60V input converters, QBE4 and EBE4 converters have an extended input voltage of 36-75V. Quarter brick QBE4 converters are rated at 12V/42A and 12V/60A and eighth brick EBE4 converters are rated at 12V/22A and 12V/30A.
These DC-DC converters deliver up to 720W power and up to 95.5% full load efficiency. All these high power modules have optimal thermal performance and fully regulated output voltages. The QBE and EBE series products are UL62368-1 2nd edition recognized. Protections against over voltage, over current, short circuit and over temperature are standard. Optional features include various lead lengths, baseplate, encapsulation, output trim, and droop current share.
Netpower is a technology leader of open-frame and encapsulated high efficiency and high density DC-DC and AC-DC power converters.
