Open Frame Power Supply for Network Switch and PoE Switch Applications

13/08/2021

FSP260-P35 series have 4 single-output options including 12V, 18V, 24V or 54V. It supports 260W full output power in a dimension of 3” x 5”. FSP250-H24 series, on the other hand, provides 250W full output power with a choice of 3 single-output models (12V, 24V or 54V) which come with a compact size in 2”x 4”. Foreseeing sustainability, efficiency, and reliability of power supply systems relying more on HVDC (High-Voltage Direct Current) technology, FSP’s team took HVDC input operation (128 ~370Vdc) into design feature. Both series maintain full power output at the fixed operating temperature of 50°C and 90-264Vac (128-370Vdc) without de-rating. At standby mode, the input power consumption is less than 0.5W.

Main Features

  • Class-I design
  • Input Voltage: FSP260-P35 90-264Vac, FSP250-H24 90-264Vac or HVDC 128-370V
  • Output Wattage: FSP260-P35 260W @ Forced air cooling, 180W @ Convection cooling, FSP250-H24 250W@ Forced air cooling, 150W @ Convection cooling
  • Low profile: FSP260-P35 3” x 5” , FSP250-H24 2” x 4”
  • Input power consumption < 0.5W @ 0.2W max load
  • Surge protection ± 2 KV diff., ± 4 KV com
  • High altitude 5000 meters operation
  • Safety standard: IEC 62368-1
  • Safety certificate: CB, UL, CE
Documents Tech question

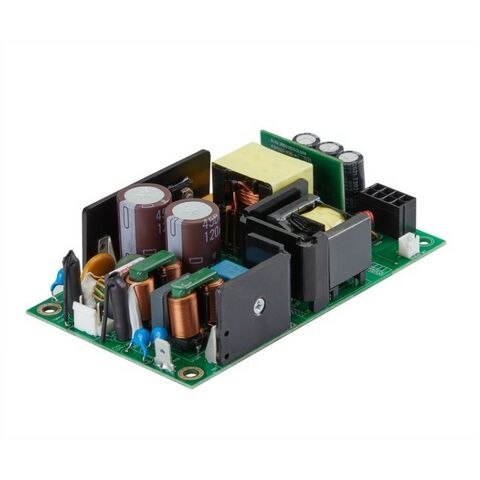

FSP FSP260 P35 series

Open Frame Power Supply for Network Switch and PoE Switch Applications
