Open Frame for Networking Switch and PoE Switch Applications

09/04/2021

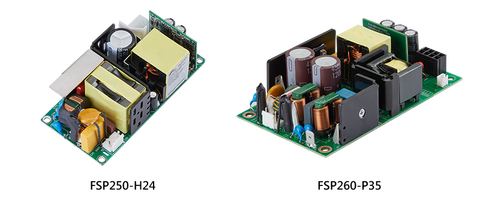

FSP250-H24 is a single-output model with 250W output power and a dimension of 2”x 4” x 1.283”. The model series include 12v, 24v, and 54v. Specially designed for Networking Switch and PoE Switch, they feature A/C and HVDC (high-voltage d/c) voltage input functions.

FSP260-P35 is a single-output model with 260W output power and a dimension of 3” x 5” x 1.34”. the model series include 12V/18V/24V/54V output voltage options. The products are intended for Networking Switch, PoE Switch, and Docking applications.

The two product series can maintain full power output at the fixed operating temperature of 50°C and 90-264Vac (128-370Vdc) without de-rating. Under standby mode, the input power consumption is less than 0.5W. In line with EMI EN55032: Class B specifications and in compliance with CB 62368-1, UL/cUL, and CE global safety regulations, terminal products are provided with the highest security guarantee.

Documents Tech question
210326 605 D7 F5 D772 EB

Open Frame for Networking Switch and PoE Switch Applications

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • Class-I design
  • IEC 62368-1 safety standard
  • HVDC 128~310V input operation
  • Input power less than 0.5W @ 0.2W load
  • Compact 2”x4”x1.283”
  • EN 55032 Class B radiated emission
  • High altitude 5000 meters operation
