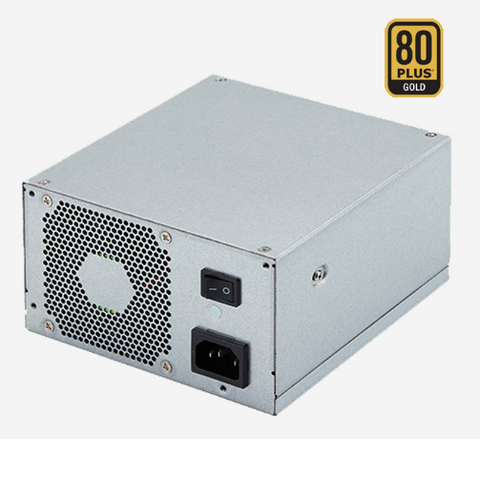

Next-Gen 700W Medical ATX Power supplies

03/11/2023

FSP600M-70PB and FSP700M-70PB are with the design that incorporates peak current on 12V1 and 12V2, these PSUs are suitable for CAD/CAM medical applications. This unique design ensures a responsive and stable energy flow, vital in applications demanding precision and reliability. The built-in DC/DC converter on the +3.3V and +5V output rails further enhances load regulation, providing a consistent voltage supply.

This series of AC/DC switching power supplies in a standard ATX form factor 165 x 150 x 86 mm, is capable of delivering 600 or 700 watts of continuous power. PSU build-in DC/DC converter at +3.3V and +5V output rails to enhance load regulation. High-efficiency design complies with 80PLUS GOLD efficiency and intel power supply design guide ATX version 3.0 multi-rail 2.0. PSU is suitable for medical PC and related applications.

Main Features

  • Continuous power of 600 or 700 Watts
  • BF Class application
  • Peak power design on 12V1 and 12V2
  • DC/DC on 3.3V & 5V output rails with improved load regulation, transient response, and lower minimum load.
  • Compliant with 80+ GOLD efficiency
  • Certified with the latest Safety and EMC standards
  • IEC 60601-1:2005+A1:2012+A2:2020 (Edition 3.2)
  • IEC 60601-1-2:2014+A1:2020 (Edition 4.1)
  • High altitude operation up to 5000 meters
  • Compact dimensions of 165 x150 x 86 mm
Documents Tech question
FSP FSP600 M 70 PB

Next-Gen 700W Medical ATX Power supplies

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

FSP

FSP Group is the leading switching power supplier in the world. FSP Group produces large selections of products to serve its customers in LCD TV, LED Lighting, Medical, Industrial / Desktop computers and Servers.

Read more
FSP Logo

Documents

  • FSP FSP600 M 70 PB Datasheet
