New Series of Chip Scale Package (CSP) LEDs takes Commercial Lighting to another Level

21/10/2022

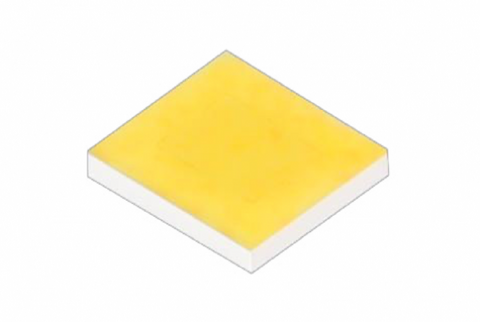

The Bridgelux Chip Scale Package (CSP) offers exceptional performance and color quality all in a highly reliable, cost effective, ultra-compact package. These LEDs offer high quality light in a wide range of CCT and CRI options and are well suited for both commercial and residential lighting applications. The smallest form factor with wide viewing angle is powering beautiful light and diverse designs.

Bridgelux® Vesta® Series Tunable White HD With CSP are available.

Main Features

Product (BXCP)	CCT Range (Nominal)	CRI	Flux (4000K)	Forward Voltage (Typical)	Nominal Drive Current	Dimensions (mm)
CSP 1111	2700K - 6500K	90 95	105 lm 97 lm	3.0 V	350 mA	1.1x1.1x0.32
CSP 1313	2700K - 6500K	80 90 95	135 lm 115 lm 108 lm	2.9 V	350 mA	1.3x1.3x0.32
CSP 1919	3000K - 6500K 2700K - 6500K 2700K - 6500K	70 80 90	170 lm 158 lm 132 lm	2.8 V	350 mA	1.86x1.86x0.32
CSP 2323	2700K - 6500K	70 80 90 95	175 lm 163 lm 137 lm 129 lm	2.75 V	350 mA	2.3x2.3x0.36

Competitive efficacy and lumen per dollar
Industry standard form factors and footprint ; 1-sided emitter
Excellent color maintenance
Compatible with SMT
Superior luminous flux at maximum current forreduced LED count
Hot-color targeting ensures that color is within theANSI bin at the typical application conditions of 85°C
Enables 3- and 5-step MacAdam ellipse custombinning kits
120 degrees viewing angle
Multiple CCT and CRI configurations for a wide range of lighting applications
