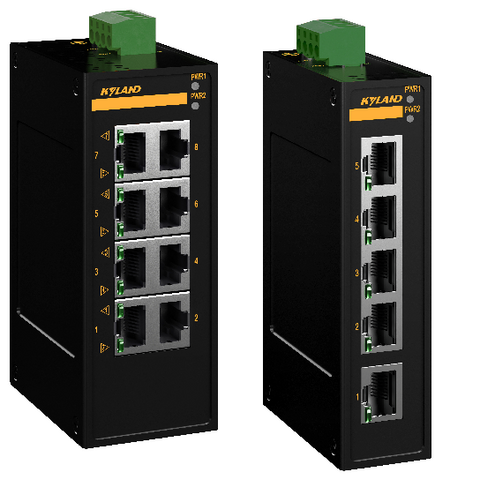

New Opal-L unmanaged Ethernet switch series

18/03/2022

Kyland released a new OPAL-L series to offer you an alternative product solution to the current OPAL variants. The OPAL-L has a much shorter leadtime 6-10 weeks.

The new OPAL-L series can be used in almost all existing applications like the existing OPAL series.

New OPAL-L series (Alternative to)
Opal5L-5T Opal5
Opal8L-8T Opal8
Opal10GL Opal10G
Opal8GL Opal10G
Opal5GL Opal5G
Opal20GL (Rel. Sept. 2022) Opal20

Main Features

  • Support 2 Fast Ethernet fiber/RJ45 optional ports, 6 10/100Base-T(X) ports (OPAL8L)
  • Support 1 Fast Ethernet fiber/RJ45 optional port, 4 10/100Base-T(X) ports (OPAL5L)
  • Built-in isolated power supply, Full load power consumption is as low as 3.4 W
  • Both standard (-10°C to 60°C) and wide (-40°C to 75°C) operating temperature models are available
  • Enable broadcast storm protection
  • EMC level 3
  • IP30 protection class
Documents Tech question
Kyland OPAL L Series
