New High-Powered TVS Component for DC & AC, Remote Lines, Industrial Wiring

11/11/2022

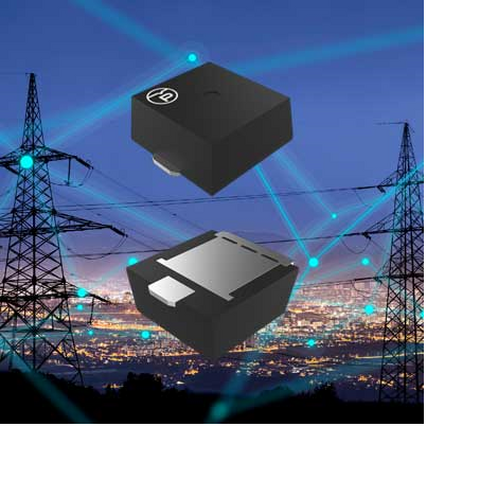

New SKCxxxCS series for DC & AC, for industrial, and telecom protection applications. The series are 10kA 8/20 us rated, bidirectional transient voltage suppressors that are designed for high-power bus clamping applications. These devices provide a lower clamping voltage at the rated peak current. The SKCxxxCS can be connected in series or in parallel to create high current and/or high voltage protection solutions. The SKCxxxCS series is available in the SMTO-218 (Tab) package configuration pictured here and is rated at 1,600 Kilowatts peak pulse power (8/20 microseconds).

Main Features

  • Compatible with IEC 61000-4-2 (ESD): Air ±30kV, Contact ±30kV
  • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns
  • Compatible with IEC 61000-4-5 (Surge)
  • 1600 kilowatts Peak Pulse Power per Line(tp = 8/20µs)
  • High Current Capability
  • Surface Mount Device
  • Excellent Clamping Voltage
  • Glass Passivated Junction
  • Bidirectional Configuration
  • Low Slope Resistance
  • Repetition Rate (Duty Cycle): 0.01%
  • Hazardous Substance Free
  • RoHS Complaint (Exemption #7)
Documents Tech question
Protek SK Cxxx CS series
