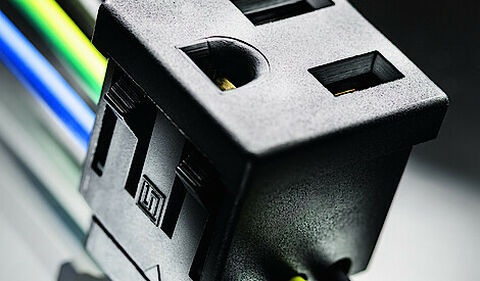

NEMA Receptacles 5-15R Portfolio expanded

18/02/2022

SCHURTER’s latest series of appliance outlets NR020 and NR021 combine classic features with new ones to meet increased fire protection and safety standards according to UL 498 Tamper Resistant, as well as facilitating compliance of receptacles used in Household and Commercial Furniture and Furniture Power Distribution Units (FPDUs), according to UL 962 and UL 962A. Higher temperature ratings and added configurations for series NR010 and NR020 respond to power demands facing Datacom infrastructures today.

The NR010 and NR020 series have an operating temperature range of -25 ˚C to 150 ˚C in response to the power needs of the Datacom industry. In addition, the NR010 with IDC terminals in Along- and Cross orientation to the Pin-Axis provides a version with an independent L terminal for the IDC-Along version.

Main Features

  • Panel mount: Snap-in, Front Side
  • Line Outlet tramper resistant, Protection class I
  • Version with insulation walls between terminals designed for use in power distribution units for household and commercial furnishings required to meet the UL 962 spill test
  • Solder terminals
  • Suitable for use in equipment according to IEC/UL 62368-1
Documents Tech question
Schurter NR010 21 21
