Multi-Channel High-Precision Analog-to-Digital Converter

01/03/2024

The new TPC517 series is a Multi-Channel High-Precision ADC. This device features a built-in high-precision reference and operates within a temperature range of –40℃ to +125℃. The product can be widely applied in areas such as test and measurement, industrial instruments, data acquisition, and medical devices.

A high-performance ADC often claims "no missing code," meaning that as the input voltage sweeps across the input range, all output code combinations appear sequentially at the converter output. This ensures no missing code when the Differential Nonlinearity (DNL) error is less than ±1LSB. The TPC517 series ADCs feature a 16-bit no-missing-code capability, meeting customers' requirements for high-precision sampling

Main Features

  • Multi-channel SAR ADC Product Family
    – 16-bit Resolution with No Missing Code
    – 8-channel Multiplexed Inputs
  • Flexible Input Types
    – Unipolar Single-ended
    – Unipolar Differential Pairs
    – Unipolar Differential (GND sense)
    – Bipolar Differential Pairs
    – Bipolar Differential (COM = VREF/2)
  • Throuput: 1 MSPS
  • High Linearity
    – DNL: ±0.55 LSB typical
    – INL: ±1.5 LSB typical
  • High Dynamic Performance
    – SNR: 89.4 dB typical
    – SINAD: 89.2 dB typical
    – THD: −103 dB typical
  • Analog Input Range: 0 V to VREF with VREF up to VDD
Documents Tech question

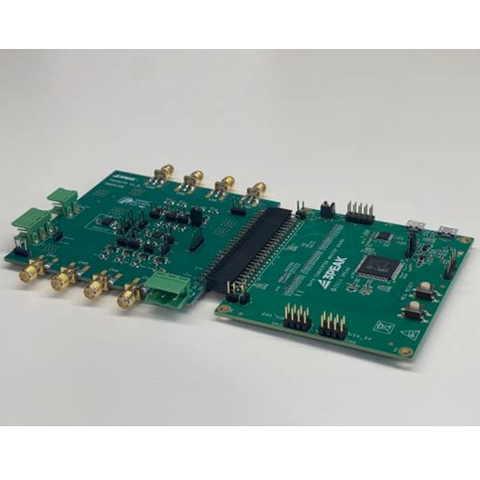

3peak TPC517

Multi-Channel High-Precision Analog-to-Digital Converter

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 8 Instrumentation

    T&M and instrumentation

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 755896279

    Analog, mixed signal & sensor ICs

3Peak

3PEAK is committed to the research and development of high-performance, high-quality, and highly reliable integrated circuit products, including signal chains, power analog chips, mixed-signal front-ends, and embedded processors to provide customers with all-around solutions.

Read more
3peak Logo

Documents

  • 3 Peak TPC51701 Datasheet
