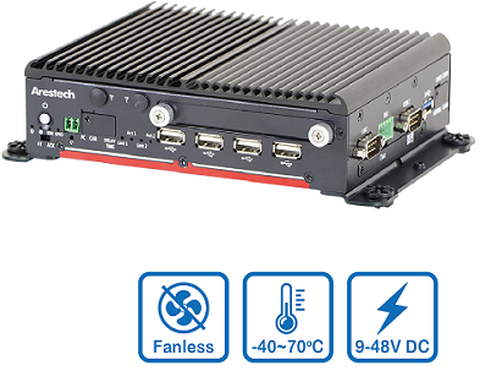

Modular Embedded Rugged Computers with Intel® Celeron® J1900 Processor

08/10/2021

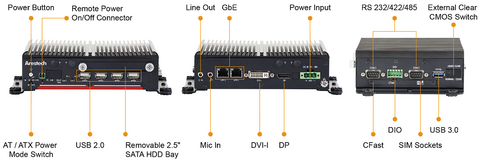

  • Cable-free and Jumper-less Design to Enhance Reliability
  • Supports 1x DVI-I and 1x DP
  • 2x Intel® GbE Ports, Supporting Wake-on-LAN and PXE
  • 2x SIM Card Sockets for Cellular Connections
  • 2x Full-size Mini-PCIe Sockets
  • Supports Power Protection (OVP / OCP / RVP)

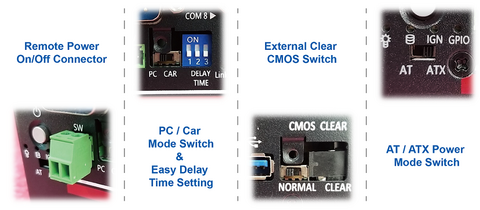

  • 1x External AT / ATX Power Mode Switch
  • 9 – 48V DC Wide-range Power Inputs with Power Ignition Function
  • Wide Operating Temperature Range from -40°C to 70°C
  • 1x PC / Car Mode Switch
  • 1x External Clear CMOS Switch

Main Features

Model

USB COM GbE DVI-I DP HDD

MERA-2000-2L

x 5
1 x USB 3.0
4 x USB 2.0

x 2
RS 232/422/485

x 2
Intel® i210-AT

x 1
up to 1920 x 1200

x 1
up to 1920 x 1200

x 1
(Removable)

MERA-2001-2L

x 2
(Removable)

MERA-2001S-2L

x 6
RS 232/422/485

x 2
(Removable)
