Modern programmable sensor module with CAN FD connection

02/02/2024

The PCAN-GPS FD is a programmable sensor module for position and orientation determination with CAN FD connection. It has a satellite receiver, a magnetic field sensor, an accelerometer, and a gyroscope. Incoming sensor data is processed by the NXP microcontroller LPC54618 and then transmitted via CAN or CAN FD.

The behavior of the PCAN-GPS FD can be programmed freely for specific applications. The firmware is created using the included development package with GNU compiler for C and C++ and is then transferred to the module via CAN. Various programming examples facilitate the implementation of own solutions.

Main Features

  • NXP LPC54618 microcontroller with Arm® Cortex® M4 core
  • High-speed CAN connection (ISO 11898-2)
  • Complies with CAN specifications 2.0 A/B and FD
  • CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 10 Mbit/s
  • CAN bit rates from 40 kbit/s up to 1 Mbit/s
  • NXP TJA1043 CAN transceiver
  • CAN termination can be activated through solder jumpers
  • Wake-up by CAN bus or by separate input
  • Receiver for navigation satellites u-blox MAX-M10S
  • Supported navigation and supplementary systems: GPS, Galileo, BeiDou, GLONASS, SBAS, and QZSS
  • Simultaneous reception of 3 navigation systems
  • 3.3 V supply of active GPS antennas
Documents Tech question

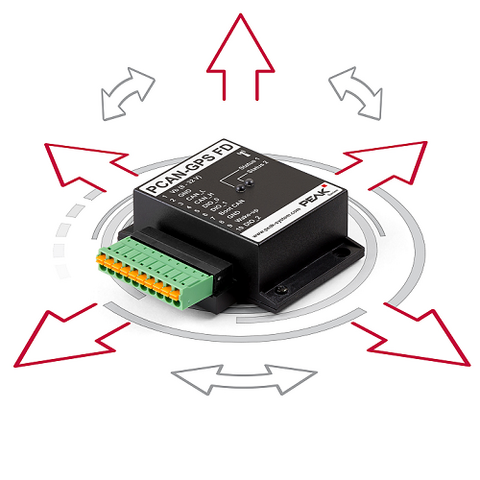

PEAK systems PCAN GPS FD

Modern programmable sensor module with CAN FD connection

  • Applications
  • Technologies
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • 62 shutterstock 1184841823

    Sensors

  • Shutterstock 604148486

    Embedded I/O expansion modules & systems

Documents

  • PEAK PCAN GPS FD User Manual
