LTE Cat 4 Wireless Communication Module in mPCIe

18/12/2020

NL668-EAU MiniPCIe is a MiniPCIe form factor LTE wireless communication module which supports LTE-TDD/LTE-FDD/WCDMA/GSM 4 modes. The highest speed can reach Cat 4 150Mbps DL and 50Mbps UL. . It can be used in industries such as industrial routing, security, and Internet of Vehicles.

NL668-EAU is the LTE Cat 4 wireless communication module launched by FIBOCOM Auto Inc. It adopts LTE 3GPP Rel. 11 technology, and is a 4G communication module released for the European/Asia-pacific/Australian regional market. Supports a maximum downlink rate of 150Mbps and a maximum uplink rate of 50Mbps.
Product from the customer’s point of view, built-in rich protocol stack, integration of multiple standard interfaces: support PCM/I2S codec interface, analog audio; Support SDIO interface for WiFi/BT and eMMC; Support SGMII Ethernet interface. Built-in high precision positioning GNSS (GPS/GLONASS/BeiDou/Galileo/QZSS), simplify the customer product design.
NL668-EAU supports a variety of drivers and system software features (USB drivers for Windows/Linux/Android operating systems).
NL668-EAU developed in accordance with the IATF16949 system, followed the APQP process, and supported the PPAP submission standard. Comply with vehicle electrical and electronic equipment environmental conditions.

Documents Tech question
Fibocom

LTE Cat 4 Wireless Communication Module in mPCIe

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

NL668-EAU MiniPCIe:

  • LTE FDD: B 1/3/5/7/8/20/28
  • LTE TDD: B38/40/41
  • WCDMA: B1/5/8
  • GSM/GPRS/EDGE: 850/900/1800MHz
  • MiniPCIe: 51x30x3.7mm
  • Temperature:
    Normal Operation: -30~+75°C
    Extended operation: -40~+85°C
    Storage Temperature: -40~+85°C
  • Operating Voltage: 3.3V~4.3V typical 3.8V

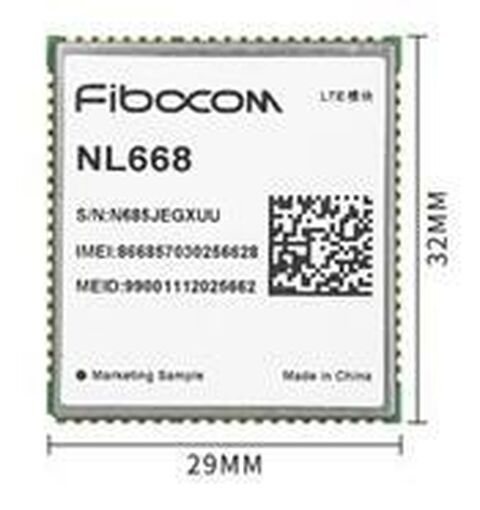

NL-668-EAU:

  • Chipset; MDM9607
  • LTE FDD: Band 1/3/5/7/8/20/28
  • LTE TDD: Band 38/40/41
  • WCDMA: Band 1/5/8
  • GSM/GPRS/EDGE: 850/900/1800MHz

Applications & Markets

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 1047068560

    Wireless connectivity SoCs & modules

  • 30 shutterstock 1115081195

    Industrial embedded communication

Fibocom

Fibocom is a leading global provider of IoT (Internet of Things) wireless solutions and wireless communication modules offering reliable, accessible, secure, and intelligent wireless solutions to every IoT application scenario for the increasingly digitalized industries and enriched smart life of the whole society.

Read more
Fibocom Logo

Documents

  • Fibocom NL668 EAU Datasheet
  • Fibocom NL668 EAU Mini PC Ie Datasheet
