Isolated RS-485 Transceivers with Integrated DC/DC Converter

31/05/2024

The CA-IS2092A family of devices is galvanically-isolated RS-485 transceivers with built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs. The transceivers have the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides up to 2.5kVRMS (60s) of galvanic isolation and ±150kV/μs typical CMTI Isolation improves data communication by breaking ground loops and reduces noise where there are large differences in ground potential between ports. An integrated DC-DC converter generates the 3.3V or 5V operating voltage for the cable-side.

Main Features

  • High-Performance and Compliant with RS-485 EIA/TIA-485 Standard
  • Data rate up to 0.5Mbps
  • 1/8 unit load enables up to 256 nodes on the bus
  • DC-DC supply voltage range(VDDP) 3.0V to 5.5V
  • RS-485 supply input(VDDL)2.5V to 5.5V
  • Integrated DC-DC Converter for Cable-side Power:
    - 3.3V and 5V output options
    - High integration with internal transformer
    - Soft-start reduces input inrush current
    - Overload and short-circuit protection
    - Thermal shutdown
  • Robust Galvanic Isolation of Digital Signals:
    - 2.5kVRMS withstand isolation voltage for 60s (galvanic isolation)
    - CMTI:±150kV/μs
    - High lifetime:>40 years
  • Integrated Protection for Robust Communication:
    - ±8kV Human Body Model(HBM) ESD protection on bus I/O
    - True fail-safe guarantees known receiver output state
    - Driver current limit and thermal shutdown
  • Wide operating temperature range: –40°C to 125°C
  • Package: LGA16
  • Safety Regulatory Approvals(pending):
    - 3535VPK VIOTM and 566VPK VIORM per DIN VDE V0884-11:2017-01
    - 2.5kVRMS isolation for 1 minute per UL 1577
Documents Tech question

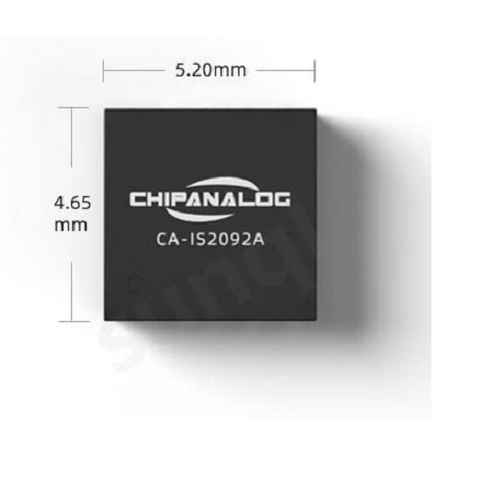

Chipanalog CA IS2092 A

Isolated RS-485 Transceivers with Integrated DC/DC Converter

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 11 Motor Control

    Motor Control

  • 17 Home Building Automation

    Home & Building Automation

Technologies

  • Shutterstock 24035881

    Interface ICs

Chip Analog

Chipanalog is a high-tech company specialized in high-end analog and mixed-singal integrated products R&D and sales, offering isolation, interface, driver and power management as well as high performance analog chips for industrial control, power and renewable energy and automotive electronics sectors.

Read more
Chip Analog Logo

Documents

  • Chipanalog CA IS2092 A Datasheet
